16B-3 76 P/W, PLATEWHEEL
Triplex, 1" pitch, 76 tooth Platewheel. Can be you used with 16B-3 chain.
Also known as CT 12 076, X316Z76, PWH16B376, 8TR76PW
- UnitsPer unit
- 1 - 4£1,340.15 (£1,608.18 inc VAT)
- 5 - 9£1,273.15 (£1,527.78 inc VAT)
- 10 +£1,206.14 (£1,447.37 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 16B-3 76 P/W, Platewheel | |
| Reference | 16B-3 76 P/W |
| Brand | BR |
| Number of Teeth | 76 |
| Pitch (P) Inch | 1"" (25.4mm) |
| Pitch (P) mm | 25.4mm |
| Type | Triplex |
| Weight (KG) | 175.7 |

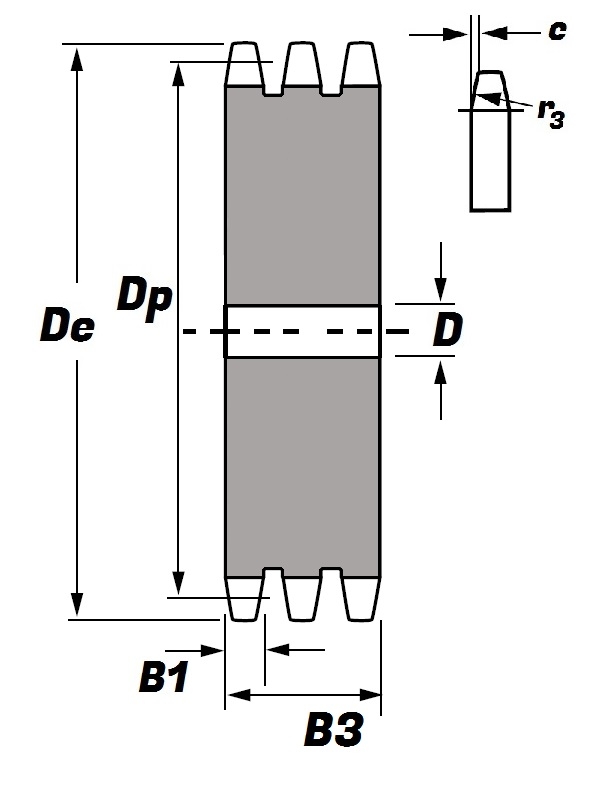

Schematic for 16B-3 76 P/W, Platewheel | |
| b | 15.8mm |
| B1 | 16.2mm |
| B3 | 79.6mm |
| c | 2.5mm |
| D | 40mm |
| De | 627mm |
| Dp | 614.65mm |
| r3 | 26mm |
