20309 K C3

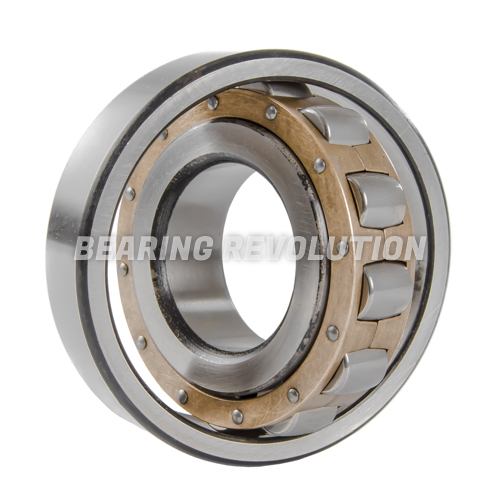

BARREL ROLLER BEARING WITH A 45MM BORE - PREMIUM RANGE
Single row barrel roller bearing with a parallel bore and C3 clearance, suitable where high radial shock type loads occur and misalignments must be compensated, from our Premium Range. 45mm x 100mm x 25mm.
Please use this form for enquiries and pricing.
Specifications for 20309 K C3 | |
| Reference | 20309 K C3 |
| Brand | BR |
| Inside Diameter | 45mm |
| Outside Diameter | 100mm |
| Width | 25mm |
| Bore Type | Tapered |
| Clearance | C3 |
| Weight (KG) | 1.01 |

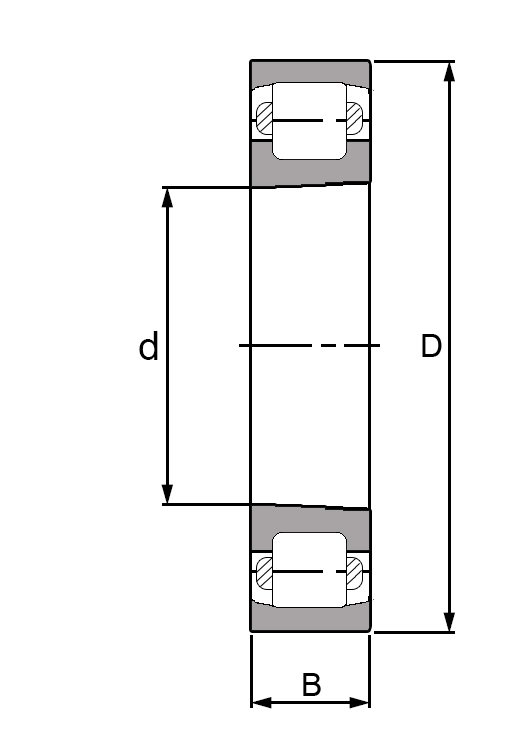

Schematic for 20309 K C3 | |
| B | 25mm |
| d | 45mm |
| D | 100mm |
