209 ZNR C3

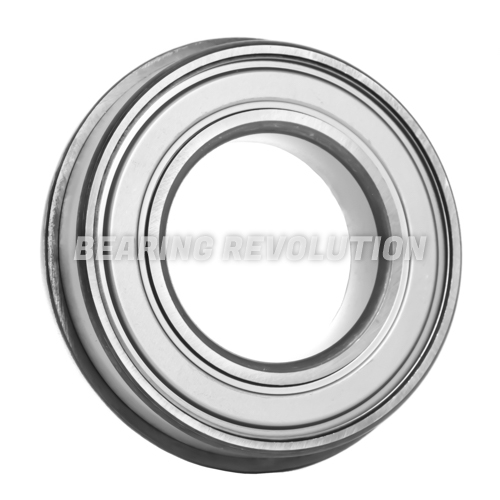

DEEP GROOVE BALL BEARING WITH A 45MM BORE - STEEL CAGE - PREMIUM RANGE
Light series maximum capacity single row deep groove ball bearing with C3 clearance, one shield and a fitted snap ring from our Premium range. 45mm ID, 85mm OD and 19mm width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for 209 ZNR C3 | |
| Reference | 209 ZNR C3 |
| Brand | Premium |
| Inside Diameter | 45mm |
| Outside Diameter | 85mm |
| Width | 19mm |
| Clearance | C3 |
| Seals / Shields | One Shield |
| Snap Ring | Snap Ring |
| Weight (KG) | 0.46 |
Schematic for 209 ZNR C3 | |
| B | 19mm |
| d | 45mm |
| D | 85mm |
