20B-3 09 Pilot-Bore Sprocket

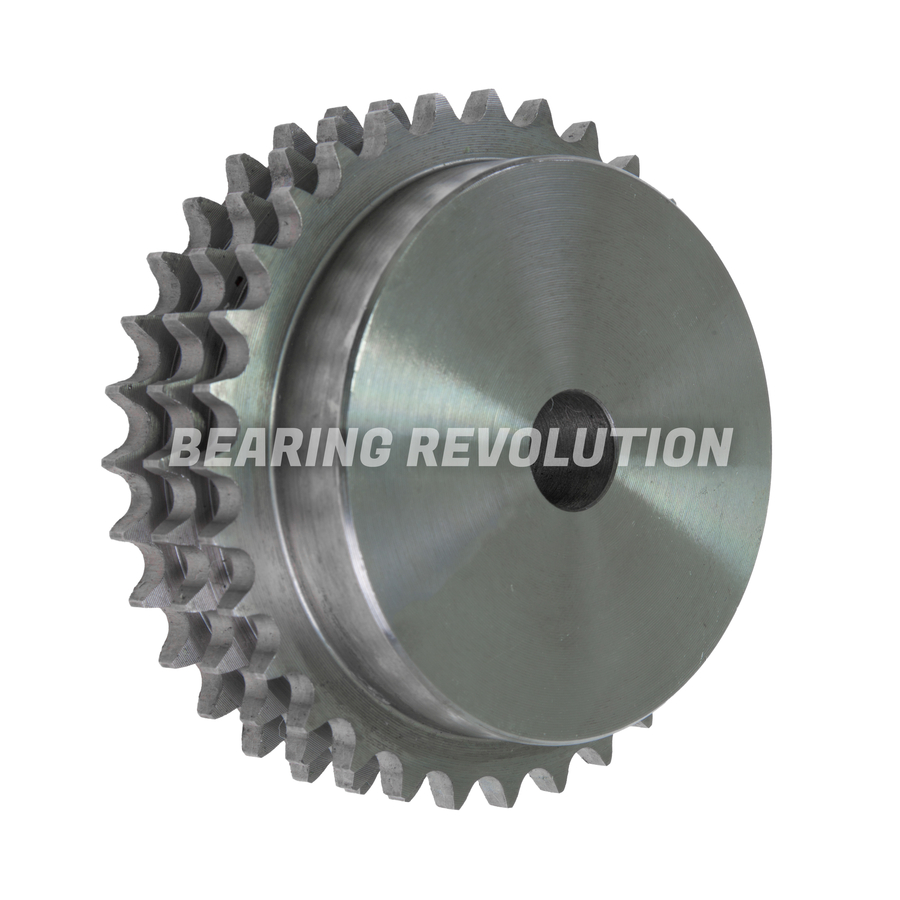

Please note photos are for illustration purposes only
How To Measure A Bearing

20B-3 09 PILOT-BORE SPROCKET

BR Stock No. U-20B-3 09 | Brand: BR | Mfr. Part No. 20B-3 09

20B-3 09 Pilot-Bore Sprocket to suit 20B-3 chain.

Also known as PT13009, 10 TR 09

  • UnitsPer unit
  • 1+£98.43 (£118.12 inc VAT)
  • Bulk Order PricesENQUIRE
Qty:
£98.43 ex VAT
Trade Account
20B-3 09 Pilot-Bore Sprocket Schematic

Specifications for 20B-3 09 Pilot-Bore Sprocket

Reference20B-3 09
BrandBR
MaterialSteel
Number of Teeth9
Pitch (P) Inch1.1/4" (31.75mm)
Pitch (P) mm31.75mm
TypeTriplex
Weight (KG)3.33

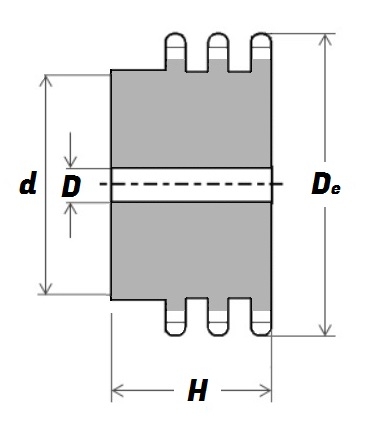

Schematic for 20B-3 09 Pilot-Bore Sprocket

d63mm
D20mm
De108mm
H110mm
