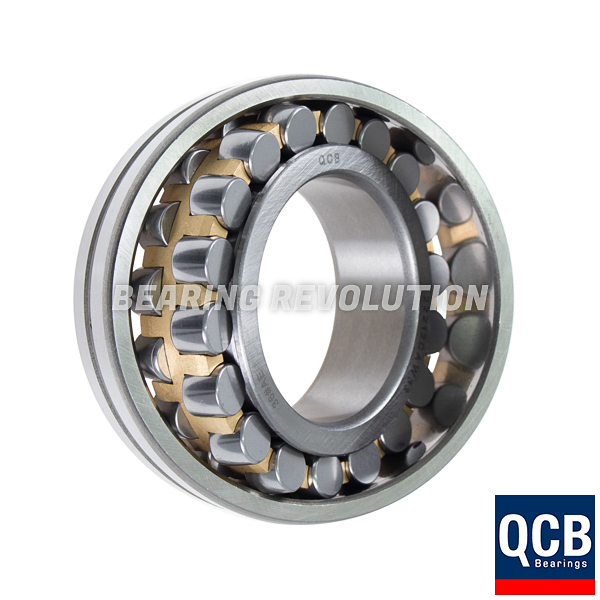

22224 K C3 W33
SPHERICAL ROLLER BEARING WITH A BRASS CAGE AND A 120MM BORE - SELECT RANGE
Double row spherical roller bearing with a tapered bore and C3 clearance, benificial for high radial and axial loads, from our Select Range. 120mm x 215mm x 58mm.
Please use this form for enquiries and pricing.
Specifications for 22224 K C3 W33 | |
| Reference | 22224 K C3 W33 |
| Brand | BR |
| Inside Diameter | 120mm |
| Outside Diameter | 215mm |
| Width | 58mm |
| Bore Type | Tapered |
| Clearance | C3 |
| Weight (KG) | 9.01 |
Schematic for 22224 K C3 W33 | |
| B | 58mm |
| d | 120mm |
| D | 215mm |
