22316 C3 W33

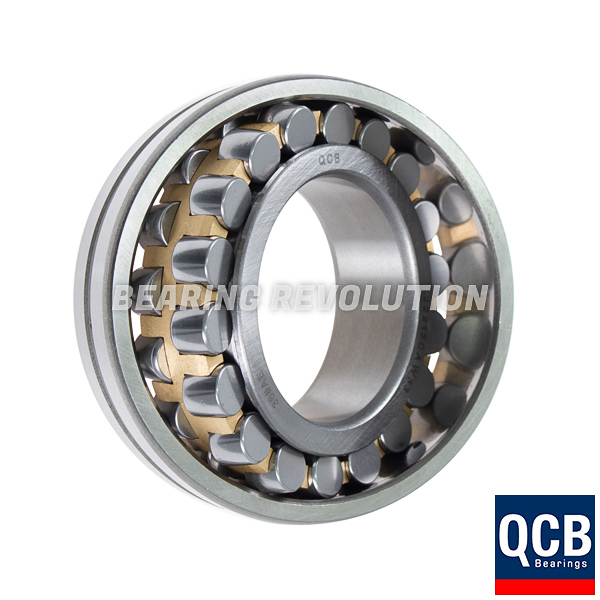

SPHERICAL ROLLER BEARING WITH A 80MM BORE - SELECT RANGE
Double row spherical roller bearing with a parallel bore and C3 clearance, benificial for high radial and axial loads, from our Select Range. 80mm x 170mm x 58mm.
Please use this form for enquiries and pricing.
Specifications for 22316 C3 W33 | |
| Reference | 22316 C3 W33 |
| Brand | BR |
| Inside Diameter | 80mm |
| Outside Diameter | 170mm |
| Width | 58mm |
| Bore Type | Parallel |
| Clearance | C3 |
| Weight (KG) | 6.2 |
Schematic for 22316 C3 W33 | |
| B | 58mm |
| d | 80mm |
| D | 170mm |
