23220 K C4 W33

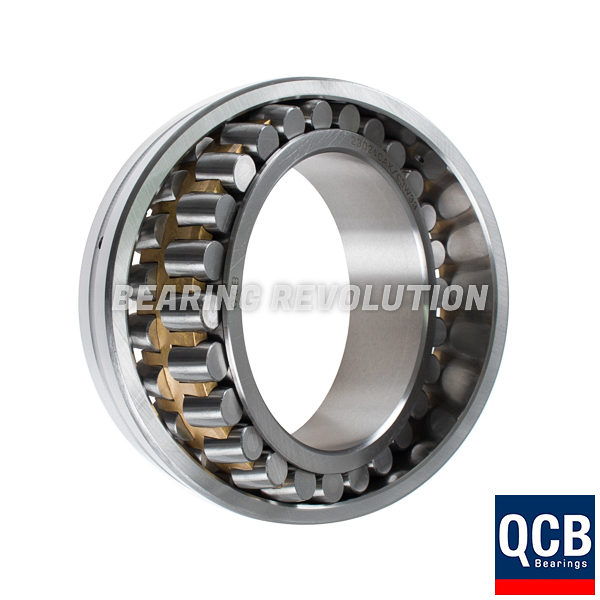

SPHERICAL ROLLER BEARING WITH A BRASS CAGE AND A 100MM BORE - SELECT RANGE
Double row spherical roller bearing with a tapered bore and C4 clearance, benificial for high radial and axial loads, from our Select Range. 100mm x 180mm x 60.3mm.
Please use this form for enquiries and pricing.
Specifications for 23220 K C4 W33 | |
| Reference | 23220 K C4 W33 |
| Brand | BR |
| Inside Diameter | 100mm |
| Outside Diameter | 180mm |
| Width | 60.3mm |
| Bore Type | Tapered |
| Clearance | C4 |
| Weight (KG) | 6.4 |
Schematic for 23220 K C4 W33 | |
| B | 60.3mm |
| d | 100mm |
| D | 180mm |
