24156 K30 C3 W33

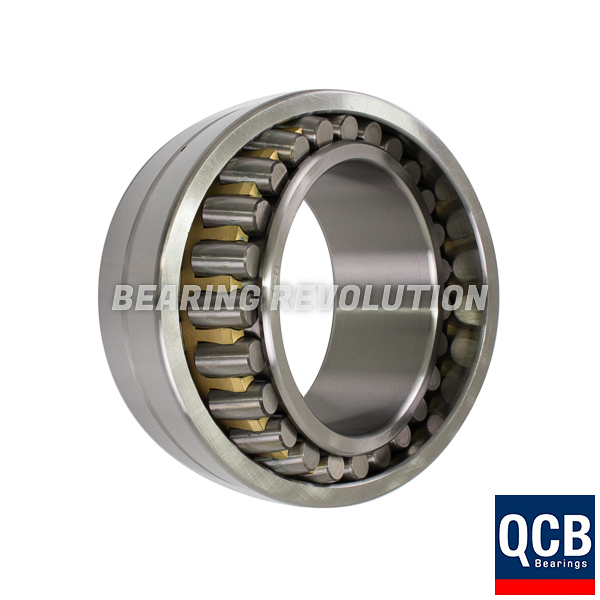

SPHERICAL ROLLER BEARING WITH A 280MM BORE - SELECT RANGE
Double row spherical roller bearing with a tapered bore and C3 clearance, benificial for high radial and axial loads, from our Select Range. 280mm x 460mm x 180mm.
Please use this form for enquiries and pricing.
Specifications for 24156 K30 C3 W33 | |
| Reference | 24156 K30 C3 W33 |
| Brand | BR |
| Inside Diameter | 280mm |
| Outside Diameter | 460mm |
| Width | 180mm |
| Bore Type | Tapered |
| Clearance | C3 |
| Weight (KG) | 120 |
Schematic for 24156 K30 C3 W33 | |
| B | 180mm |
| d | 280mm |
| D | 460mm |
