24B-1 22 Pilot-Bore Sprocket
Please note photos are for illustration purposes only
How To Measure A Bearing

24B-1 22 PILOT-BORE SPROCKET

BR Stock No. U-24B-1 22 | Brand: BR | Mfr. Part No. 24B-1 22

24B-1 22 Pilot-Bore Sprocket to suit 24B-1 chain.

Also known as PS14022, 12 SR 22

  • UnitsPer unit
  • 1+£111.66 (£133.99 inc VAT)
  • Bulk Order PricesENQUIRE
Qty:
£111.66 ex VAT
Trade Account
24B-1 22 Pilot-Bore Sprocket Schematic

Specifications for 24B-1 22 Pilot-Bore Sprocket

Reference24B-1 22
BrandBR
MaterialSteel
Number of Teeth22
Pitch (P) Inch1.1/2" (38.1mm)
Pitch (P) mm38.1mm
TypeSimplex
Weight (KG)14.62

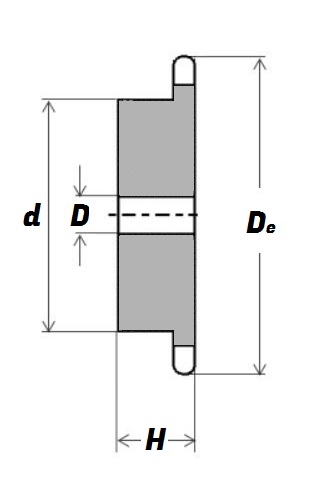

Schematic for 24B-1 22 Pilot-Bore Sprocket

d150mm
D25mm
De282.7mm
H60mm
