24B-2 22 PILOT-BORE SPROCKET

BR Stock No. U-24B-2 22 | Brand: BR | Mfr. Part No. 24B-2 22

24B-2 22 Pilot-Bore Sprocket to suit 24B-2 chain.

Also known as PD14022, 12 DR 22

Specifications for 24B-2 22 Pilot-Bore Sprocket
Reference	24B-2 22
Brand	BR
Material	Steel
Number of Teeth	22
Pitch (P) Inch	1.1/2" (38.1mm)
Pitch (P) mm	38.1mm
Type	Duplex
Weight (KG)	28.37

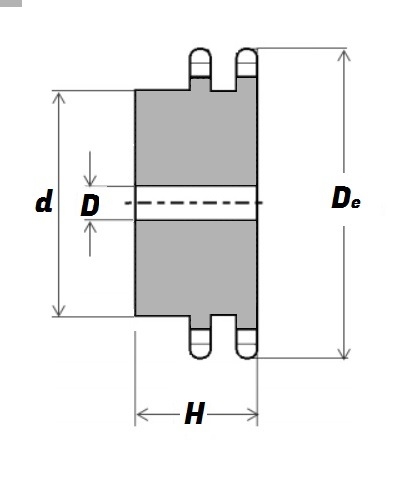

Schematic for 24B-2 22 Pilot-Bore Sprocket
d	160mm
D	25mm
De	282.7mm
H	100mm
