24B-2 23 P/W, Platewheel
Please note photos are for illustration purposes only
How To Measure A Bearing

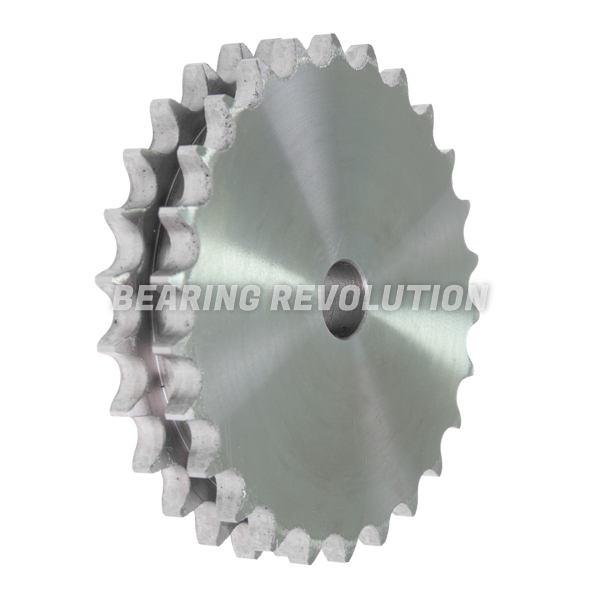

24B-2 23 P/W, PLATEWHEEL

BR Stock No. U-24B-2 23 P/W | Brand: BR | Mfr. Part No. 24B-2 23 P/W

Duplex, 1.1/2" pitch, 23 tooth Platewheel. Can be you used with 24B-2 chain.

Also known as CD 14 023, X224Z23, PWH24B223, 12DR23PW

  • UnitsPer unit
  • 1 - 4£379.89 (£455.87 inc VAT)
  • 5 - 9£360.89 (£433.07 inc VAT)
  • 10 +£341.91 (£410.29 inc VAT)
  • Bulk Order PricesENQUIRE
Qty:
£379.89 ex VAT
Trade Account
24B-2 23 P/W, Platewheel Schematic

Specifications for 24B-2 23 P/W, Platewheel

Reference24B-2 23 P/W
BrandBR
Number of Teeth23
Pitch (P) Inch1.1/2"" (38.1mm)
Pitch (P) mm38.1mm
TypeDuplex
Weight (KG)29.86

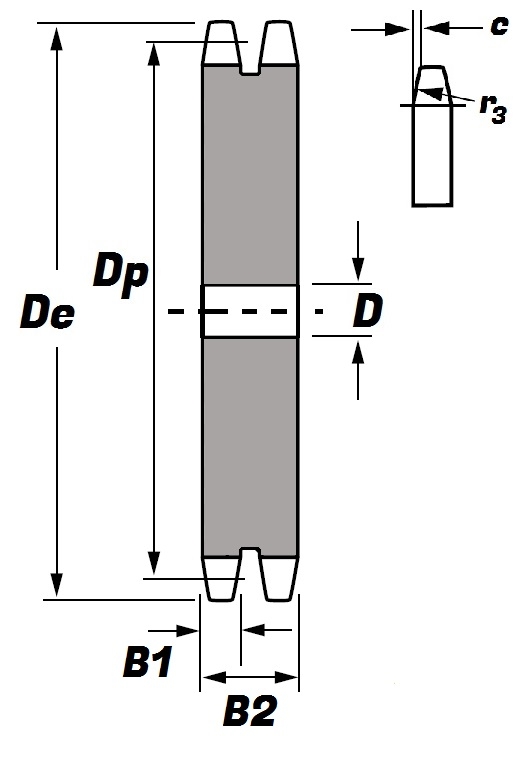

Schematic for 24B-2 23 P/W, Platewheel

b23.6mm
B124.1mm
B272mm
c4mm
D30mm
De294.8mm
Dp279.8mm
r338mm
