24B-2 45 P/W, Platewheel
Please note photos are for illustration purposes only
How To Measure A Bearing

24B-2 45 P/W, PLATEWHEEL

BR Stock No. U-24B-2 45 P/W | Brand: BR | Mfr. Part No. 24B-2 45 P/W

Duplex, 1.1/2" pitch, 45 tooth Platewheel. Can be you used with 24B-2 chain.

Also known as CD 14 045, X224Z45, PWH24B245, 12DR45PW

  • UnitsPer unit
  • 1 - 4£1,078.42 (£1,294.10 inc VAT)
  • 5 - 9£1,024.51 (£1,229.41 inc VAT)
  • 10 +£970.58 (£1,164.70 inc VAT)
  • Bulk Order PricesENQUIRE
Qty:
£1,078.42 ex VAT
Trade Account
24B-2 45 P/W, Platewheel Schematic

Specifications for 24B-2 45 P/W, Platewheel

Reference24B-2 45 P/W
BrandBR
Number of Teeth45
Pitch (P) Inch1.1/2"" (38.1mm)
Pitch (P) mm38.1mm
TypeDuplex
Weight (KG)122.3

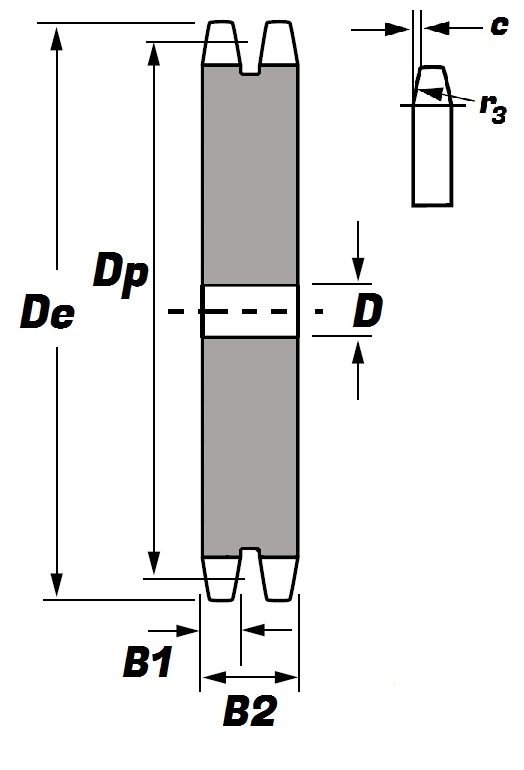

Schematic for 24B-2 45 P/W, Platewheel

b23.6mm
B124.1mm
B272mm
c4mm
D40mm
De561.2mm
Dp546.2mm
r338mm
