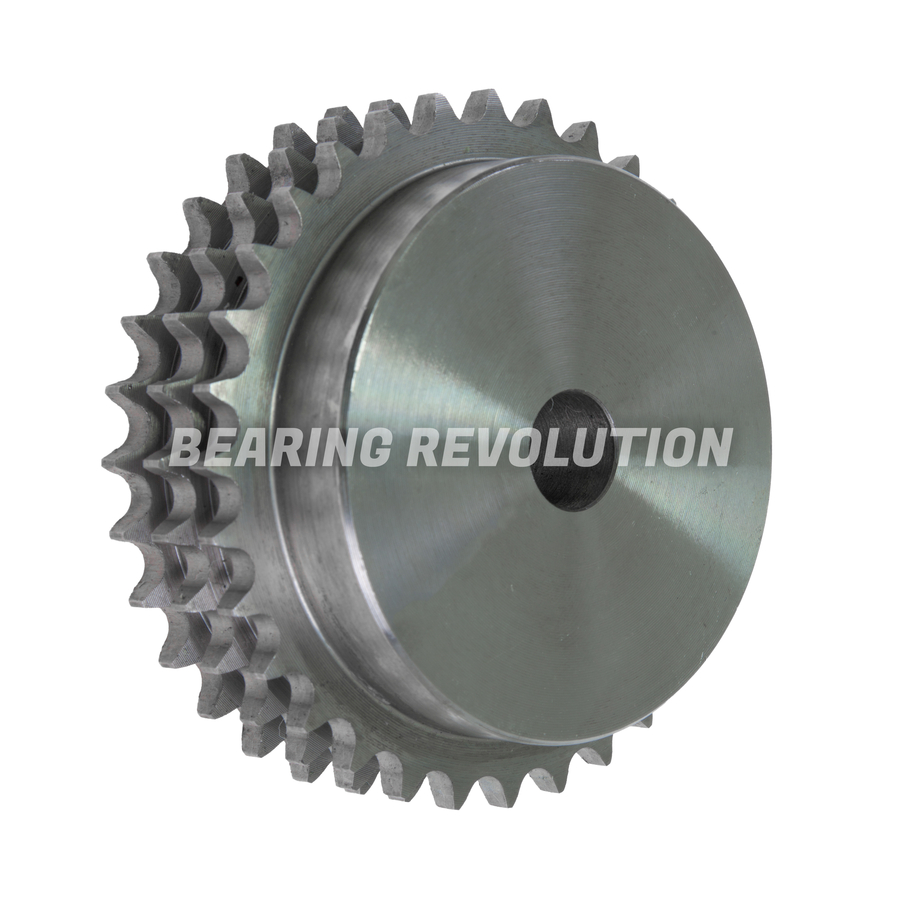

24B-3 16 Pilot-Bore Sprocket
Please note photos are for illustration purposes only
How To Measure A Bearing

24B-3 16 PILOT-BORE SPROCKET

BR Stock No. U-24B-3 16 | Brand: BR | Mfr. Part No. 24B-3 16

24B-3 16 Pilot-Bore Sprocket to suit 24B-3 chain.

Also known as PT14016, 12 TR 16

  • UnitsPer unit
  • 1+£327.21 (£392.65 inc VAT)
  • Bulk Order PricesENQUIRE
Qty:
£327.21 ex VAT
Trade Account
24B-3 16 Pilot-Bore Sprocket Schematic

Specifications for 24B-3 16 Pilot-Bore Sprocket

Reference24B-3 16
BrandBR
MaterialSteel
Number of Teeth16
Pitch (P) Inch1.1/2" (38.1mm)
Pitch (P) mm38.1mm
TypeTriplex
Weight (KG)26.9

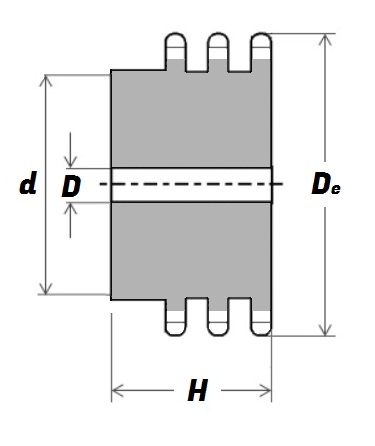

Schematic for 24B-3 16 Pilot-Bore Sprocket

d140mm
D25mm
De210.3mm
H150mm
