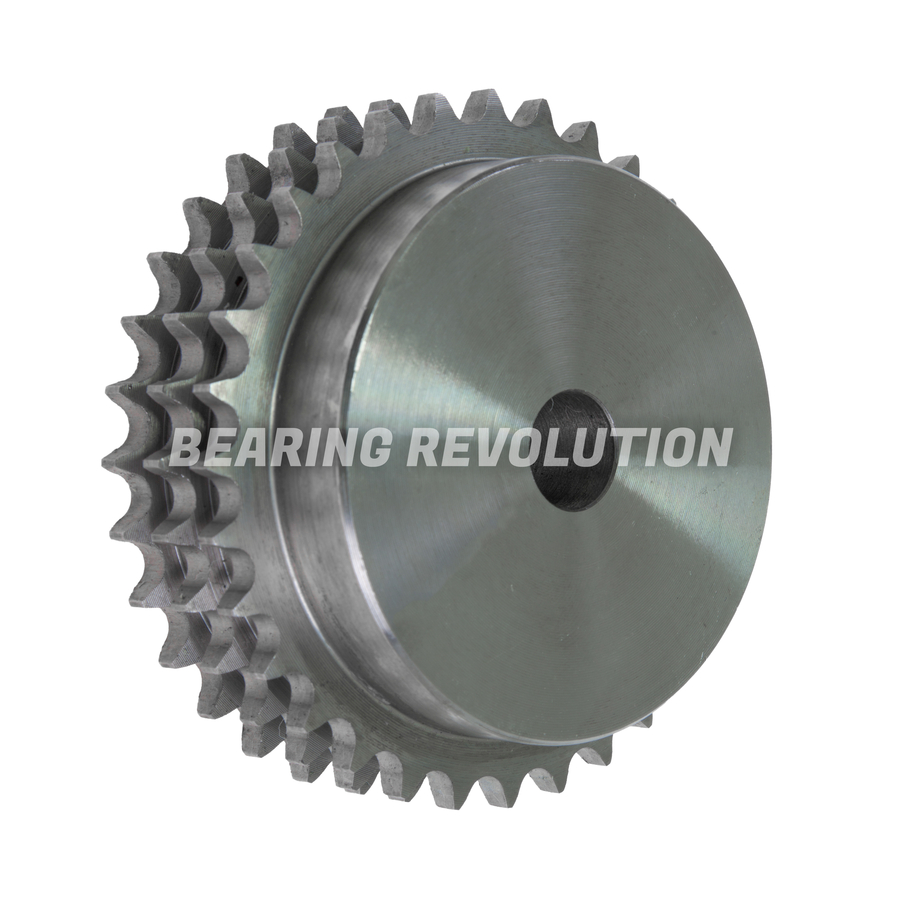

24B-3 20 Pilot-Bore Sprocket
Please note photos are for illustration purposes only
How To Measure A Bearing

24B-3 20 PILOT-BORE SPROCKET

BR Stock No. U-24B-3 20 | Brand: BR | Mfr. Part No. 24B-3 20

24B-3 20 Pilot-Bore Sprocket to suit 24B-3 chain.

Also known as PT14020, 12 TR 20

  • UnitsPer unit
  • 1+£426.31 (£511.57 inc VAT)
  • Bulk Order PricesENQUIRE
Qty:
£426.31 ex VAT
Trade Account
24B-3 20 Pilot-Bore Sprocket Schematic

Specifications for 24B-3 20 Pilot-Bore Sprocket

Reference24B-3 20
BrandBR
MaterialSteel
Number of Teeth20
Pitch (P) Inch1.1/2" (38.1mm)
Pitch (P) mm38.1mm
TypeTriplex
Weight (KG)40.57

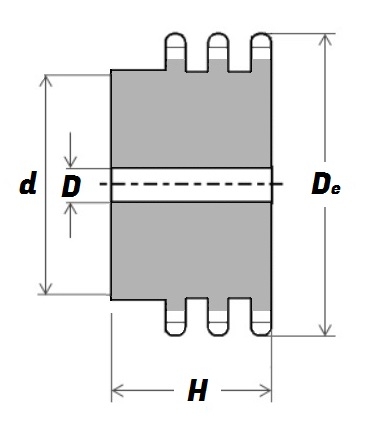

Schematic for 24B-3 20 Pilot-Bore Sprocket

d160mm
D25mm
De258.6mm
H150mm
