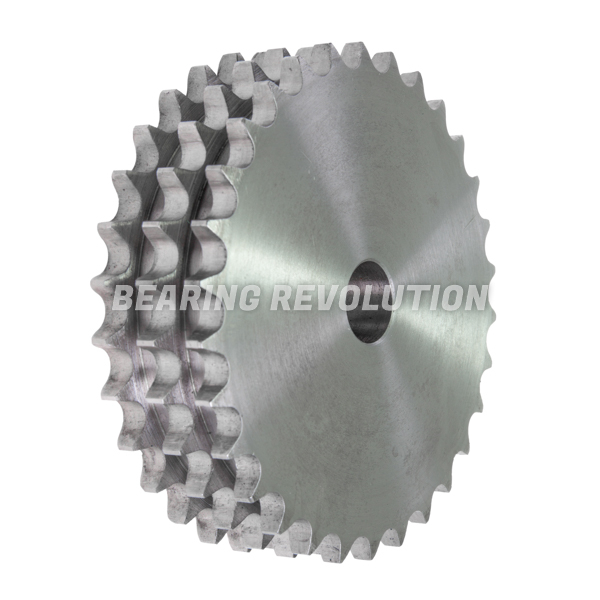

24B-3 57 P/W, PLATEWHEEL
Triplex, 1.1/2" pitch, 57 tooth Platewheel. Can be you used with 24B-3 chain.
Also known as CT 14 057, X224Z57, PWH24B357, 12DR57PW
- UnitsPer unit
- 1 - 4£3,248.21 (£3,897.85 inc VAT)
- 5 - 9£3,085.80 (£3,702.96 inc VAT)
- 10 +£2,923.40 (£3,508.08 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 24B-3 57 P/W, Platewheel | |
| Reference | 24B-3 57 P/W |
| Brand | BR |
| Number of Teeth | 57 |
| Pitch (P) Inch | 1.1/2"" (38.1mm) |
| Pitch (P) mm | 38.1mm |
| Type | Triplex |
| Weight (KG) | 331 |

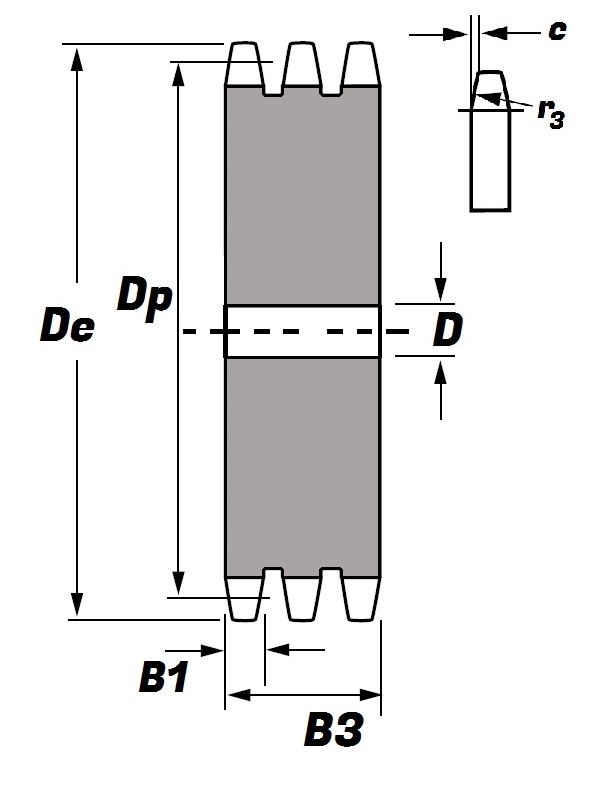

Schematic for 24B-3 57 P/W, Platewheel | |
| b | 23.6mm |
| B1 | 24.1mm |
| B3 | 120.3mm |
| c | 4mm |
| D | 40mm |
| De | 706.5mm |
| Dp | 691.73mm |
| r3 | 38mm |
