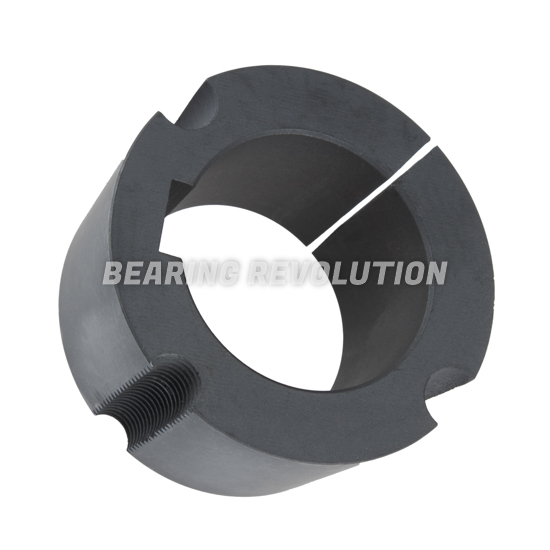

2517 - 2.3/16 TAPER BORE BUSH FOR 2.3/16 INCH SHAFT
2517 series Taper-Bore Bush to suit 2.3/16 Inch shaft
Also known as TL 2517 - 2.3/16, 2517 - 2.3/16 Taperlock Bush
- UnitsPer unit
- 1 - 4£32.36 (£38.83 inc VAT)
- 5 - 9£30.75 (£36.90 inc VAT)
- 10 +£29.12 (£34.94 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 2517 - 2.3/16 Taper Bore Bush for 2.3/16 Inch shaft | |
| Reference | 2517 - 2.3/16 |
| Brand | BR |
| Inside Diameter | .3/16" |
| Bush | 2517 |
| Number of Screws | 2 |
| Screw Size | .1/2 x 1 |
| Through Bore (H) | 44.5mm |
| Top Width (W) | 85.5mm |
| Weight (KG) | 1.06 |
Schematic for 2517 - 2.3/16 Taper Bore Bush for 2.3/16 Inch shaft | |
| d | .3/16" |
| H | 44.5mm |
