29436

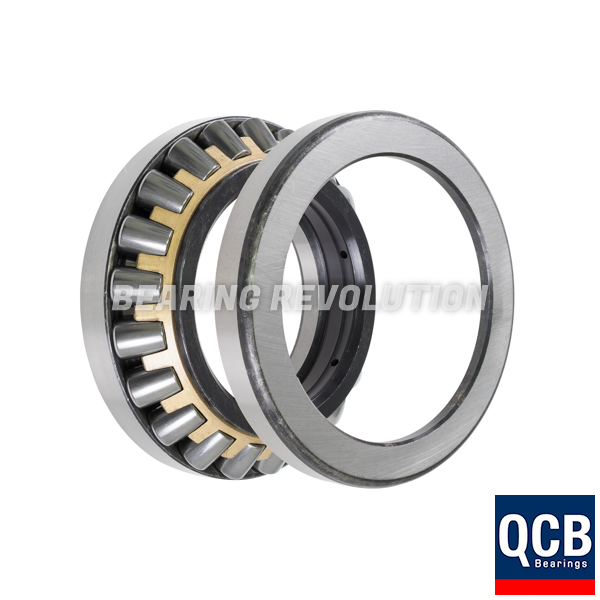

SPHERICAL ROLLER THRUST BEARING WITH A 180MM BORE - SELECT RANGE
Axial spherical roller thrust bearing, single row and self aligning. Suitable for very high axial loads but can also support radial loads with the inclined raceways realtive to the bearing axis, from our Select Range. 180mm x 360mm x 109mm.
Please use this form for enquiries and pricing.
Specifications for 29436 | |
| Reference | 29436 |
| Brand | BR |
| Inside Diameter | 180mm |
| Outside Diameter | 360mm |
| Width | 109mm |
| Weight (KG) | 52.4 |
Schematic for 29436 | |
| B | 109mm |
| d | 180mm |
| D | 360mm |
