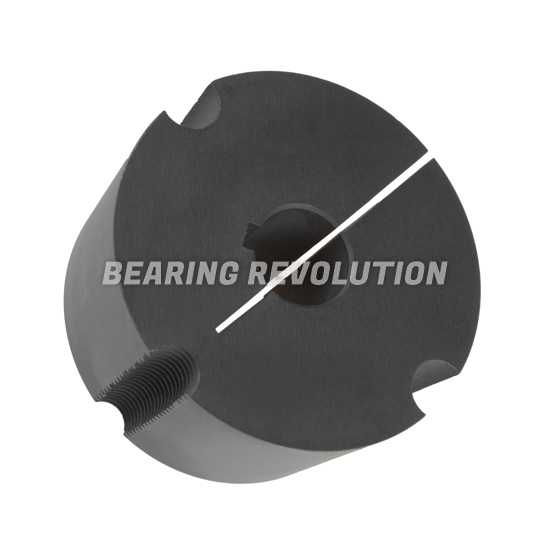

3030 - 38 TAPER BORE BUSH FOR 38 MM SHAFT
3030 series Taper-Bore Bush to suit 38 mm shaft
Also known as TL 3030 - 38, 3030 - 38 Taperlock Bush, 3030038
- UnitsPer unit
- 1 - 4£33.08 (£39.70 inc VAT)
- 5 - 9£31.43 (£37.72 inc VAT)
- 10 +£29.77 (£35.72 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 3030 - 38 Taper Bore Bush for 38 mm shaft | |
| Reference | 3030 - 38 |
| Brand | BR |
| Inside Diameter | 38mm |
| Bush | 3030 |
| Number of Screws | 2 |
| Screw Size | .5/8 X 1.1/4 |
| Through Bore (H) | 76.2mm |
| Top Width (W) | 108mm |
| Weight (KG) | 3.75 |
Schematic for 3030 - 38 Taper Bore Bush for 38 mm shaft | |
| d | 38mm |
| H | 76.2mm |
