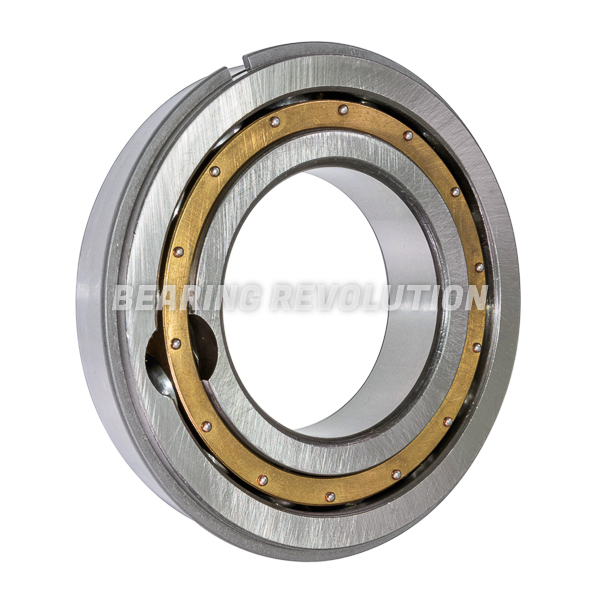

306 NR
DEEP GROOVE BALL BEARING WITH A 30MM BORE - BRASS CAGE - PREMIUM RANGE
Medium series maximum capacity single row deep groove ball bearing with a fitted snap ring from our Premium range. 30mm ID, 72mm OD and 19mm width.
Also known as 1306 MG, 306 MG, 306 WG, 330 K MAX, 8306 SR, M 306 NR, M 306 NR, M 6306 K, MT 4306
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for 306 NR | |
| Reference | 306 NR |
| Brand | Premium |
| Inside Diameter | 30mm |
| Outside Diameter | 72mm |
| Width | 19mm |
| Snap Ring | Snap Ring |
| Weight (KG) | 0.378 |

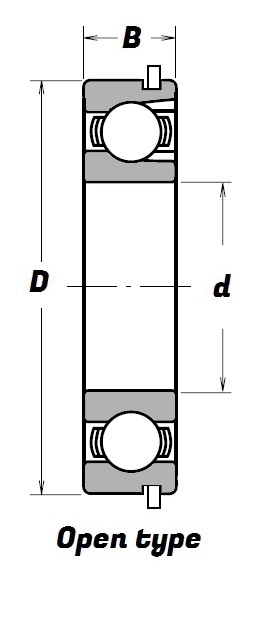

Schematic for 306 NR | |
| B | 19mm |
| d | 30mm |
| D | 72mm |
