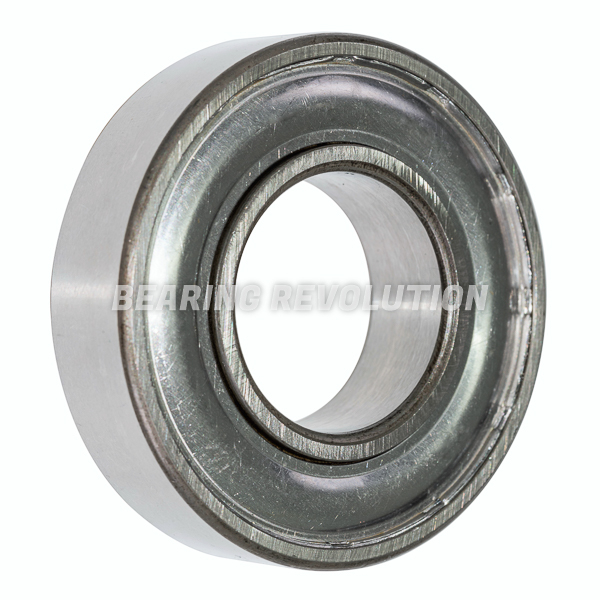

306 Z
DEEP GROOVE BALL BEARING WITH A 30MM BORE - STEEL CAGE - PREMIUM RANGE
Medium series maximum capacity single row deep groove ball bearing with one shield from our Premium range. 30mm ID, 72mm OD and 19mm width.
Also known as 1306 S, 306 MF, 306 WD, 306-Z, 330 P MAX, 8306 P, BL 306 Z, M 306 Z, M 6306 G, M 6306 Z, MT 306 P
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for 306 Z | |
| Reference | 306 Z |
| Brand | Premium |
| Inside Diameter | 30mm |
| Outside Diameter | 72mm |
| Width | 19mm |
| Seals / Shields | One Shield |
| Weight (KG) | 0.378 |
Schematic for 306 Z | |
| B | 19mm |
| d | 30mm |
| D | 72mm |
