307 NR
DEEP GROOVE BALL BEARING WITH A 35MM BORE - STEEL CAGE - SELECT RANGE
Medium series maximum capacity single row deep groove ball bearing with a fitted snap ring from our Select range. 35mm ID, 80mm OD and 21mm width.
Also known as 1307 MG, 307 MG, 307 WG, 335 K MAX, 8307 SR, M 307 NR, M 307 NR, M 6307 K, MT 4307
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£73.24 (£87.89 inc VAT)
- 5 - 9£69.58 (£83.50 inc VAT)
- 10 +£65.92 (£79.10 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 307 NR | |
| Reference | 307 NR |
| Brand | Select |
| Inside Diameter | 35mm |
| Outside Diameter | 80mm |
| Width | 21mm |
| Snap Ring | Snap Ring |
| Weight (KG) | 0.511 |

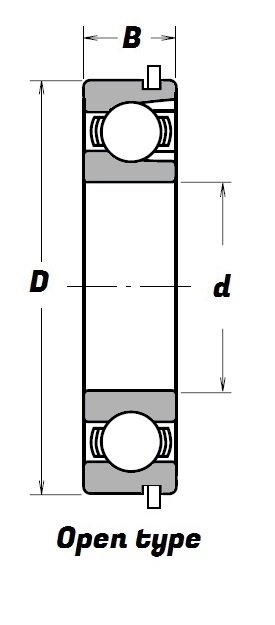

Schematic for 307 NR | |
| B | 21mm |
| d | 35mm |
| D | 80mm |
