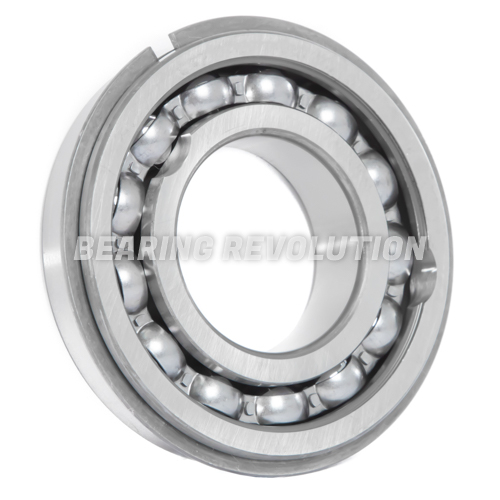

307 NR C3
DEEP GROOVE BALL BEARING WITH A 35MM BORE - STEEL CAGE - PREMIUM RANGE
Medium series maximum capacity single row deep groove ball bearing with C3 clearance and a fitted snap ring from our Premium range. 35mm ID, 80mm OD and 21mm width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for 307 NR C3 | |
| Reference | 307 NR C3 |
| Brand | Premium |
| Inside Diameter | 35mm |
| Outside Diameter | 80mm |
| Width | 21mm |
| Clearance | C3 |
| Snap Ring | Snap Ring |
| Weight (KG) | 0.511 |

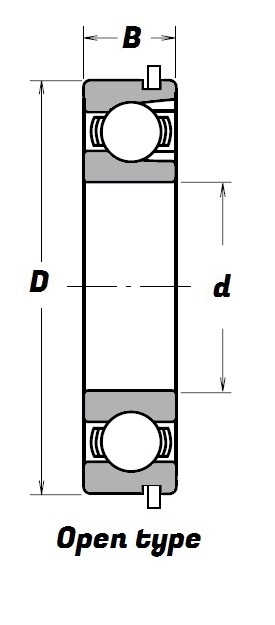

Schematic for 307 NR C3 | |
| B | 21mm |
| d | 35mm |
| D | 80mm |
