308 Z NR C3
DEEP GROOVE BALL BEARING WITH A 40MM BORE - STEEL CAGE - SELECT RANGE
Medium series maximum capacity single row deep groove ball bearing with C3 clearance, one shield and a fitted snap ring from our Select range. 40mm ID, 90mm OD and 23mm width.
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
Please use this form for enquiries and pricing.
Specifications for 308 Z NR C3 | |
| Reference | 308 Z NR C3 |
| Brand | Select |
| Inside Diameter | 40mm |
| Outside Diameter | 90mm |
| Width | 23mm |
| Clearance | C3 |
| Seals / Shields | One Shield |
| Snap Ring | Snap Ring |
| Weight (KG) | 0.796 |

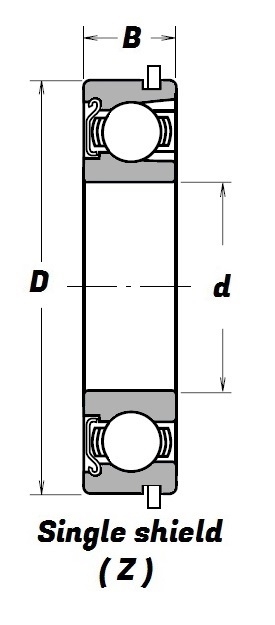

Schematic for 308 Z NR C3 | |
| B | 23mm |
| d | 40mm |
| D | 90mm |
