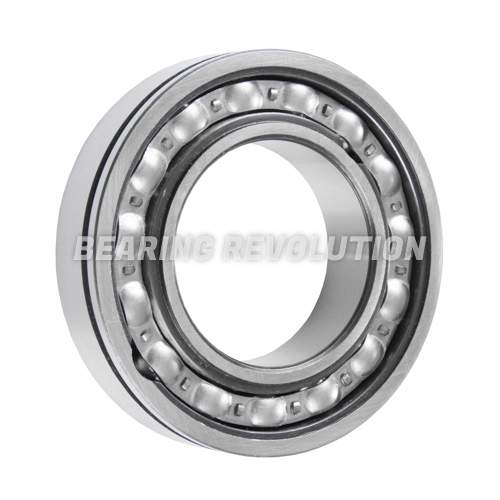

309 N
DEEP GROOVE BALL BEARING WITH A 45MM BORE - STEEL CAGE - PREMIUM RANGE
Medium series maximum capacity single row deep groove ball bearing with a snap ring groove from our Premium range. 45mm ID, 100mm OD and 25mm width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for 309 N | |
| Reference | 309 N |
| Brand | Premium |
| Inside Diameter | 45mm |
| Outside Diameter | 100mm |
| Width | 25mm |
| Snap Ring | Snap Ring Groove |
| Weight (KG) | 0.942 |

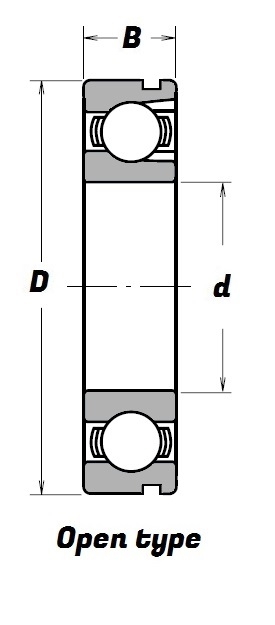

Schematic for 309 N | |
| B | 25mm |
| d | 45mm |
| D | 100mm |
