314 NR

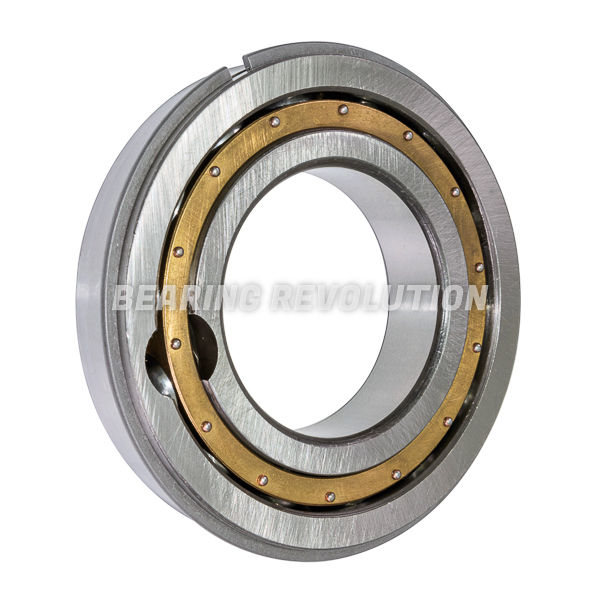

DEEP GROOVE BALL BEARING WITH A 70MM BORE - BRASS CAGE - PREMIUM RANGE
Medium series maximum capacity single row deep groove ball bearing with a fitted snap ring from our Premium range. 70mm ID, 150mm OD and 35mm width.
Also known as 314 MG, 314 WG, 370 K MAX, 8314 SR, M 314 NR, M 6314 K
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for 314 NR | |
| Reference | 314 NR |
| Brand | Premium |
| Inside Diameter | 70mm |
| Outside Diameter | 150mm |
| Width | 35mm |
| Snap Ring | Snap Ring |
| Weight (KG) | 2.89 |

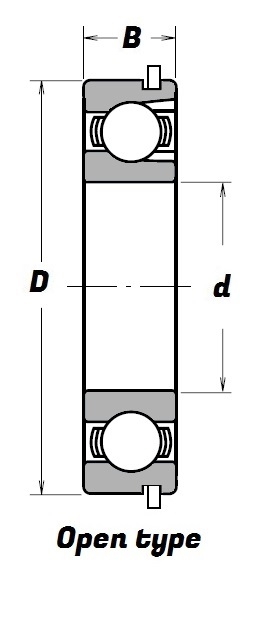

Schematic for 314 NR | |
| B | 35mm |
| d | 70mm |
| D | 150mm |
