314 NR C3

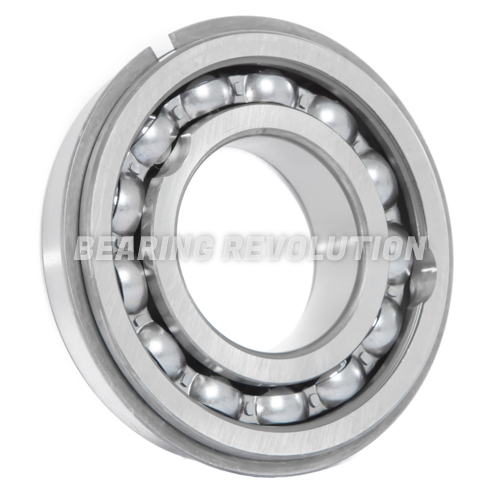

DEEP GROOVE BALL BEARING WITH A 70MM BORE - STEEL CAGE - PREMIUM RANGE
Medium series maximum capacity single row deep groove ball bearing with C3 clearance and a fitted snap ring from our Premium range. 70mm ID, 150mm OD and 35mm width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for 314 NR C3 | |
| Reference | 314 NR C3 |
| Brand | Premium |
| Inside Diameter | 70mm |
| Outside Diameter | 150mm |
| Width | 35mm |
| Clearance | C3 |
| Snap Ring | Snap Ring |
| Weight (KG) | 2.89 |

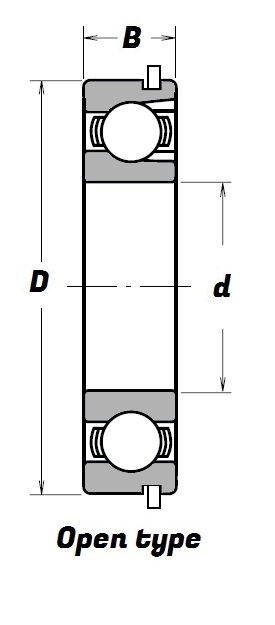

Schematic for 314 NR C3 | |
| B | 35mm |
| d | 70mm |
| D | 150mm |
