315 NR
DEEP GROOVE BALL BEARING WITH A 75MM BORE - STEEL CAGE - SELECT RANGE
Medium series maximum capacity single row deep groove ball bearing with a fitted snap ring from our Select range. 75mm ID, 160mm OD and 37mm width.
Also known as 315 MG, 315 WG, 375 K MAX, 8315 SR, M 315 NR, M 315 NR, M 6315 K
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
Please use this form for enquiries and pricing.
Specifications for 315 NR | |
| Reference | 315 NR |
| Brand | Select |
| Inside Diameter | 75mm |
| Outside Diameter | 160mm |
| Width | 37mm |
| Snap Ring | Snap Ring |
| Weight (KG) | 3.66 |

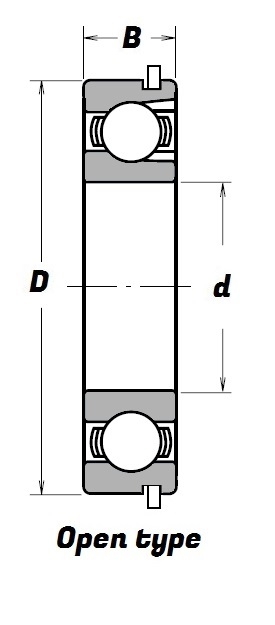

Schematic for 315 NR | |
| B | 37mm |
| d | 75mm |
| D | 160mm |
