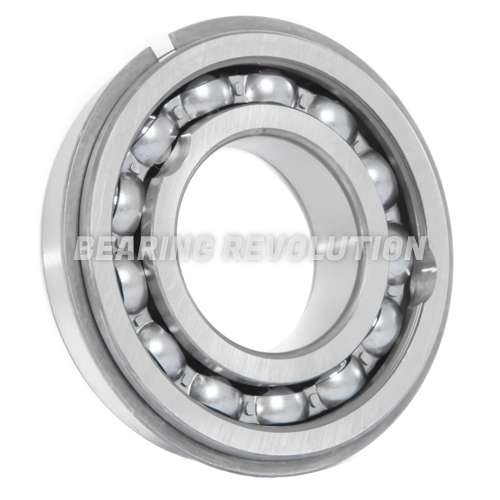

316 NR
DEEP GROOVE BALL BEARING WITH A 80MM BORE - STEEL CAGE - PREMIUM RANGE
Medium series maximum capacity single row deep groove ball bearing with a fitted snap ring from our Premium range. 80mm ID, 170mm OD and 39mm width.
Also known as 316 MG, 316 WG, 380 K MAX, 8316 SR, M 316 NR, M 6316 K
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for 316 NR | |
| Reference | 316 NR |
| Brand | Premium |
| Inside Diameter | 80mm |
| Outside Diameter | 170mm |
| Width | 39mm |
| Snap Ring | Snap Ring |
| Weight (KG) | 4.54 |

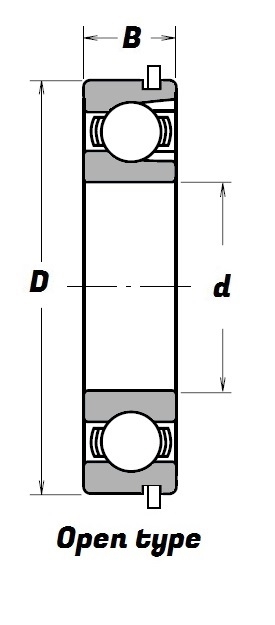

Schematic for 316 NR | |
| B | 39mm |
| d | 80mm |
| D | 170mm |
