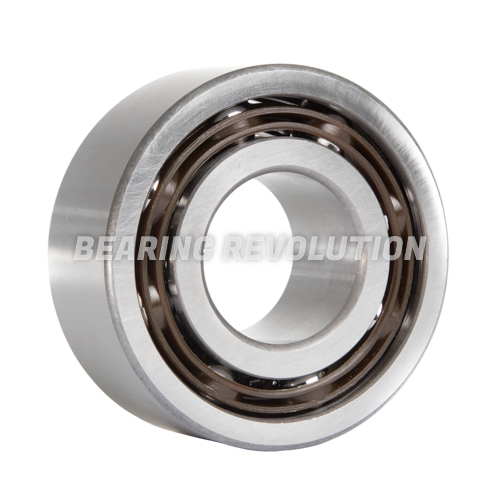

3204 C3, ANGULAR CONTACT BEARING WITH A 20MM BORE - BUDGET RANGE
Double row angular contact ball bearing with C3 clearance. Able to accommodate radial loads as well as axial loads in both directions. 20mm ID, 47mm OD, 20.6mm width.
Our budget range is manufactured to International standards and represents great value for money.
- UnitsPer unit
- 1 - 4£24.22 (£29.06 inc VAT)
- 5 - 9£23.01 (£27.61 inc VAT)
- 10 +£21.81 (£26.17 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 3204 C3, Angular Contact Bearing with a 20mm bore - Budget Range | |
| Reference | 3204 C3 |
| Brand | Budget |
| Inside Diameter | 20mm |
| Outside Diameter | 47mm |
| Width | 20.6mm |
| Clearance | C3 |
| Weight (KG) | 0.17 |

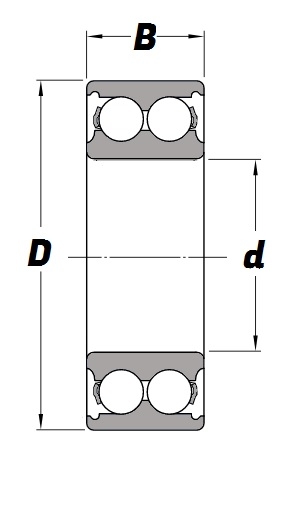

Schematic for 3204 C3, Angular Contact Bearing with a 20mm bore - Budget Range | |
| B | 20.6mm |
| d | 20mm |
| D | 47mm |
| KG | 0.17 |
