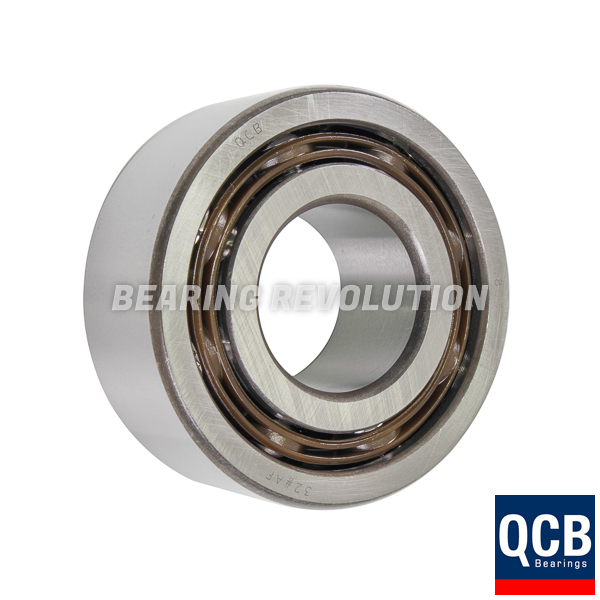

3306 C3, ANGULAR CONTACT BEARING WITH A 30MM BORE - SELECT RANGE
Double row angular contact ball bearing with C3 clearance. Able to accommodate radial loads as well as axial loads in both directions. 30mm ID, 72mm OD, 30.2mm width.
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£63.65 (£76.38 inc VAT)
- 5 - 9£60.46 (£72.55 inc VAT)
- 10 +£57.28 (£68.74 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 3306 C3, Angular Contact Bearing with a 30mm bore - Select Range | |
| Reference | 3306 C3 |
| Brand | Select |
| Inside Diameter | 30mm |
| Outside Diameter | 72mm |
| Width | 30.2mm |
| Clearance | C3 |
| Weight (KG) | 0.59 |
Schematic for 3306 C3, Angular Contact Bearing with a 30mm bore - Select Range | |
| B | 30.2mm |
| d | 30mm |
| D | 72mm |
| KG | 0.59 |
