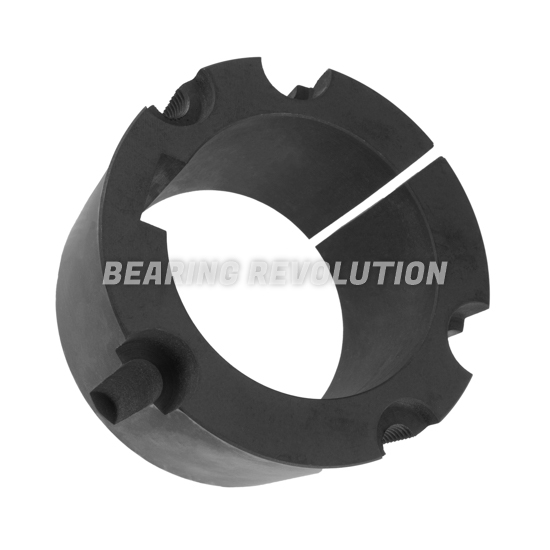

3525 - 100 TAPER BORE BUSH FOR 100 MM SHAFT
3525 series Taper-Bore Bush to suit 100 mm shaft
Also known as TL 3525 - 100, 3525 - 100 Taperlock Bush, 3525100
- UnitsPer unit
- 1 - 4£51.08 (£61.30 inc VAT)
- 5 - 9£48.53 (£58.24 inc VAT)
- 10 +£45.97 (£55.16 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 3525 - 100 Taper Bore Bush for 100 mm shaft | |
| Reference | 3525 - 100 |
| Brand | BR |
| Inside Diameter | 100mm |
| Bush | 3525 |
| Number of Screws | 3 |
| Screw Size | .1/2 x 1.1/2 |
| Through Bore (H) | 64.9mm |
| Top Width (W) | 127mm |
| Weight (KG) | 4.2 |
Schematic for 3525 - 100 Taper Bore Bush for 100 mm shaft | |
| d | 100mm |
| H | 64.9mm |
