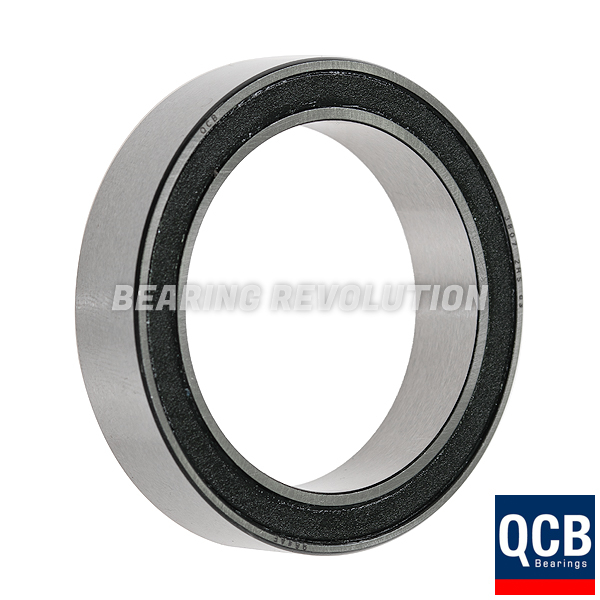

3813 2RS C3, ANGULAR CONTACT BALL BEARING WITH A 65MM BORE - SELECT RANGE
Thin section angular contact ball bearing with two seals, C3 clearance and a polyamide cage from our Select range, 65mm bore, 85mm OD, 15mm width.
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
- UnitsPer unit
- 1 - 4£71.94 (£86.33 inc VAT)
- 5 - 9£68.34 (£82.01 inc VAT)
- 10 +£64.75 (£77.70 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 3813 2RS C3, Angular Contact Ball Bearing with a 65mm bore - Select Range | |
| Reference | 3813 2RS C3 |
| Brand | Select |
| Inside Diameter | 65mm |
| Outside Diameter | 85mm |
| Width | 15mm |
| Clearance | C3 |
| Seals / Shields | two seals |
| Weight (KG) | 0.16 |
Schematic for 3813 2RS C3, Angular Contact Ball Bearing with a 65mm bore - Select Range | |
| B | 15mm |
| d | 65mm |
| D | 85mm |
