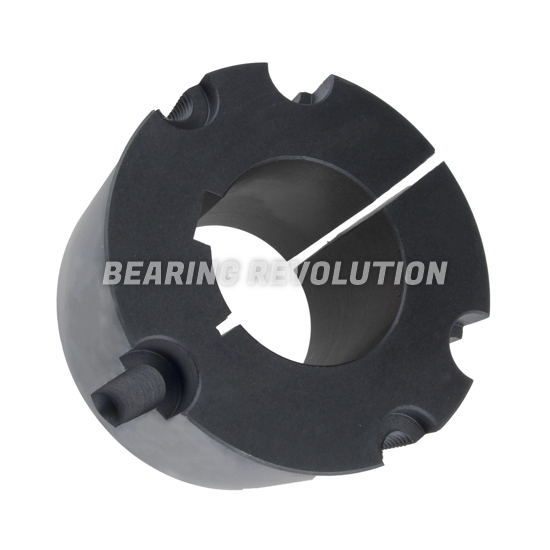

4030 - 70 TAPER BORE BUSH FOR 70 MM SHAFT
4030 series Taper-Bore Bush to suit 70 mm shaft
Also known as TL 4030 - 70, 4030 - 70 Taperlock Bush, 4030070
- UnitsPer unit
- 1 - 4£68.25 (£81.90 inc VAT)
- 5 - 9£64.84 (£77.81 inc VAT)
- 10 +£61.43 (£73.72 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 4030 - 70 Taper Bore Bush for 70 mm shaft | |
| Reference | 4030 - 70 |
| Brand | BR |
| Inside Diameter | 70mm |
| Bush | 4030 |
| Number of Screws | 3 |
| Screw Size | .5/8 X 1.1/2 |
| Through Bore (H) | 76.2mm |
| Top Width (W) | 146mm |
| Weight (KG) | 6.75 |
Schematic for 4030 - 70 Taper Bore Bush for 70 mm shaft | |
| d | 70mm |
| H | 76.2mm |
