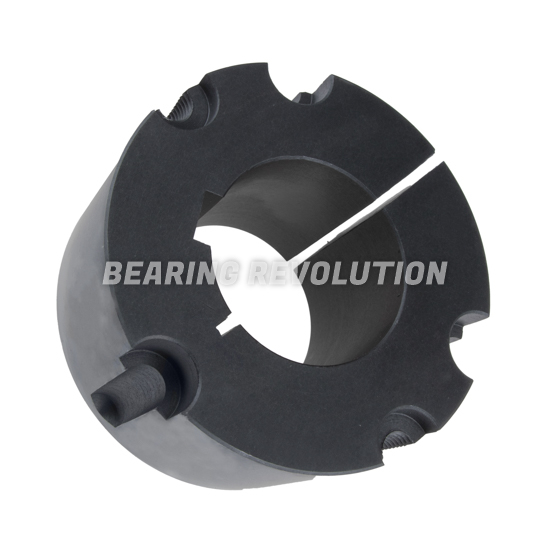

4030 - 80 TAPER BORE BUSH FOR 80 MM SHAFT
4030 series Taper-Bore Bush to suit 80 mm shaft
Also known as TL 4030 - 80, 4030 - 80 Taperlock Bush, 4030080
- UnitsPer unit
- 1 - 4£65.00 (£78.00 inc VAT)
- 5 - 9£61.74 (£74.09 inc VAT)
- 10 +£58.50 (£70.20 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 4030 - 80 Taper Bore Bush for 80 mm shaft | |
| Reference | 4030 - 80 |
| Brand | BR |
| Inside Diameter | 80mm |
| Bush | 4030 |
| Number of Screws | 3 |
| Screw Size | .5/8 X 1.1/2 |
| Through Bore (H) | 76.2mm |
| Top Width (W) | 146mm |
| Weight (KG) | 6.75 |
Schematic for 4030 - 80 Taper Bore Bush for 80 mm shaft | |
| d | 80mm |
| H | 76.2mm |
