409 Z

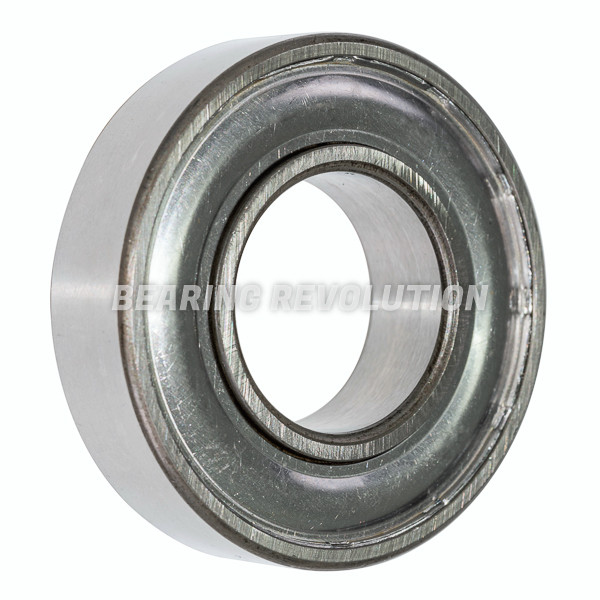

DEEP GROOVE BALL BEARING WITH A 45MM BORE - STEEL CAGE - PREMIUM RANGE
Heavy series maximum capacity single row deep groove ball bearing with one shield from our Premium range. 45mm ID, 120mm OD and 29mm width.
Also known as 409-Z, M 409 Z, M 6409 Z
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for 409 Z | |
| Reference | 409 Z |
| Brand | Premium |
| Inside Diameter | 45mm |
| Outside Diameter | 120mm |
| Width | 29mm |
| Seals / Shields | One Shield |
| Weight (KG) | 1.75 |

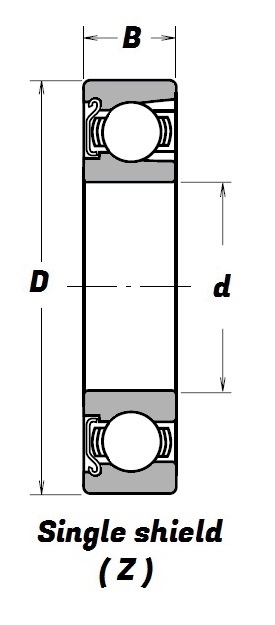

Schematic for 409 Z | |
| B | 29mm |
| d | 45mm |
| D | 120mm |
