4309 C2

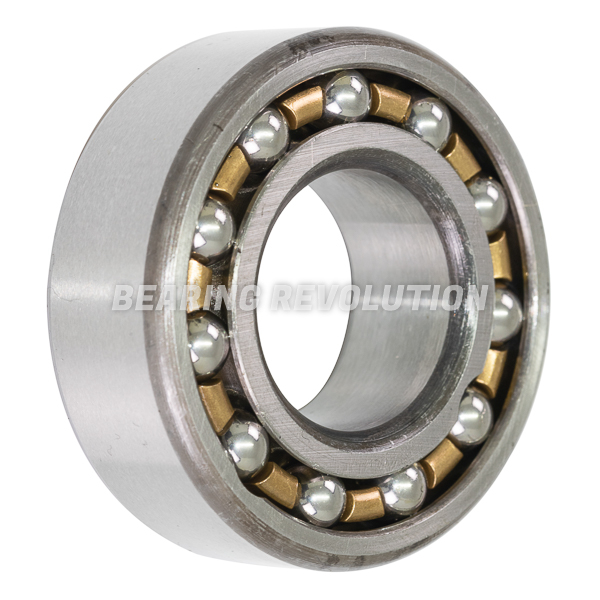

DEEP GROOVE BALL BEARING WITH A 45MM BORE - BRASS CAGE - PREMIUM RANGE
Medium series double row deep groove ball bearing with C2 clearance from our Premium range. 45mm ID, 100mm OD and 36mm width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for 4309 C2 | |
| Reference | 4309 C2 |
| Brand | Premium |
| Inside Diameter | 45mm |
| Outside Diameter | 100mm |
| Width | 36mm |
| Clearance | C2 |
| Weight (KG) | 1.25 |

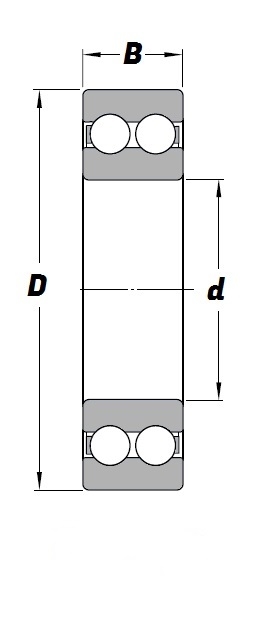

Schematic for 4309 C2 | |
| B | 36mm |
| d | 45mm |
| D | 100mm |
