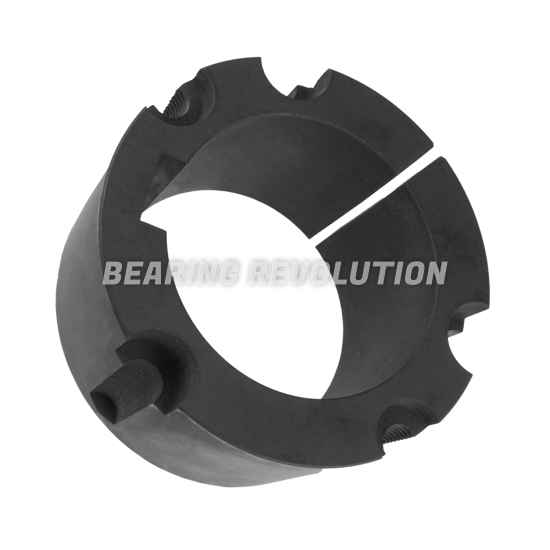

4545 - 100 TAPER BORE BUSH FOR 100 MM SHAFT
4545 series Taper-Bore Bush to suit 100 mm shaft
Also known as TL 4545 - 100, 4545 - 100 Taperlock Bush, 4545100
- UnitsPer unit
- 1 - 4£109.88 (£131.86 inc VAT)
- 5 - 9£104.39 (£125.27 inc VAT)
- 10 +£98.89 (£118.67 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 4545 - 100 Taper Bore Bush for 100 mm shaft | |
| Reference | 4545 - 100 |
| Brand | BR |
| Inside Diameter | 100mm |
| Bush | 4545 |
| Number of Screws | 3 |
| Screw Size | .3/4 x 2 |
| Through Bore (H) | 115mm |
| Top Width (W) | 162mm |
| Weight (KG) | 10.56 |
Schematic for 4545 - 100 Taper Bore Bush for 100 mm shaft | |
| d | 100mm |
| H | 115mm |
