5040 - 75 TAPER BORE BUSH FOR 75 MM SHAFT
5040 series Taper-Bore Bush to suit 75 mm shaft
Also known as TL 5040 - 75, 5040 - 75 Taperlock Bush, 5040075
- UnitsPer unit
- 1 - 4£136.34 (£163.61 inc VAT)
- 5 - 9£129.52 (£155.42 inc VAT)
- 10 +£122.71 (£147.25 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 5040 - 75 Taper Bore Bush for 75 mm shaft | |
| Reference | 5040 - 75 |
| Brand | BR |
| Inside Diameter | 75mm |
| Bush | 5040 |
| Number of Screws | 3 |
| Screw Size | .7/8 x 2.1/4 |
| Through Bore (H) | 101.6mm |
| Top Width (W) | 177.6mm |
| Weight (KG) | 11.5 |

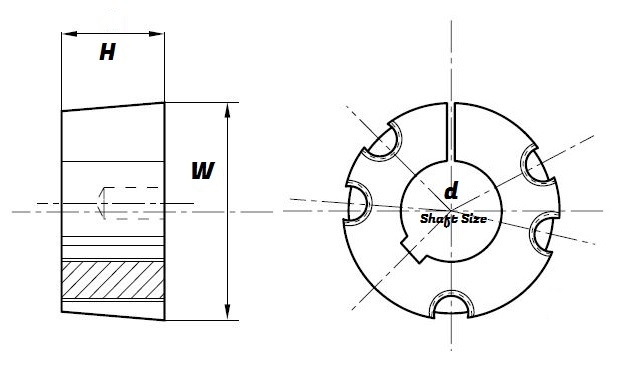

Schematic for 5040 - 75 Taper Bore Bush for 75 mm shaft | |
| d | 75mm |
| H | 101.6mm |
