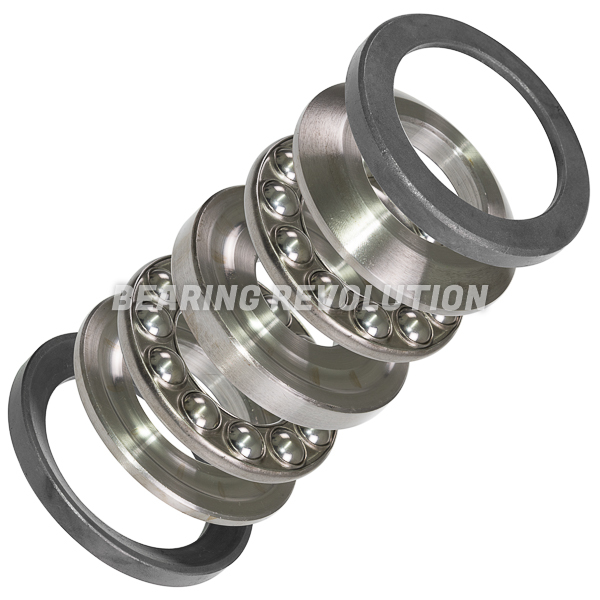

54306+2X U306
THRUST BALL BEARING WITH A 25MM BORE AND A STEEL CAGE - PREMIUM RANGE
Medium series double direction thrust ball bearing with two aligning seats and a steel cage from our Premium range - ID 25mm, OD 60mm and width 46mm.
Also known as 54306U, 54306+2xU
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for 54306+2X U306 | |
| Reference | 54306+2X U306 |
| Brand | Premium |
| Inside Diameter | 25mm |
| Outside Diameter | 60mm |
| Width | 46mm |
| Type | Medium Series |
| Weight (KG) | 0.605 |

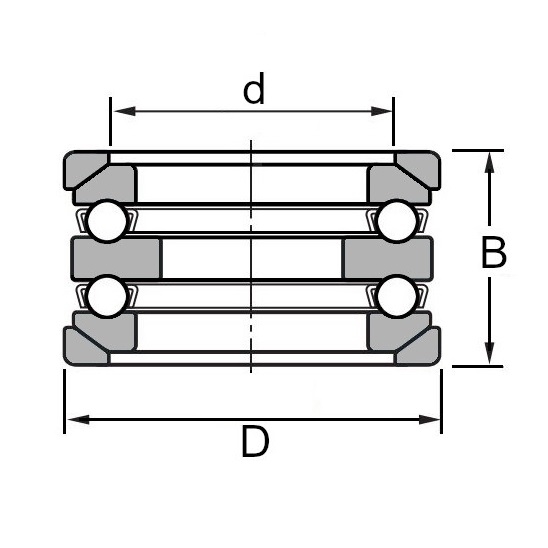

Schematic for 54306+2X U306 | |
| B | 46mm |
| d | 25mm |
| D | 60mm |
