54314+2X U314
THRUST BALL BEARING WITH A 55MM BORE - PREMIUM RANGE

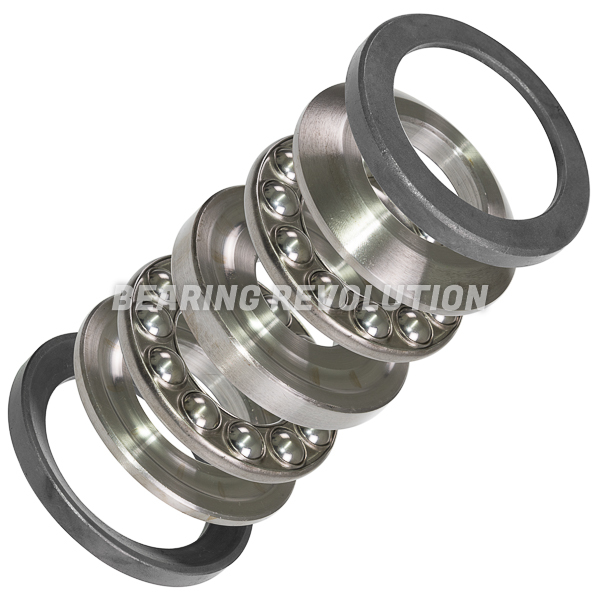

Medium series double direction thrust ball bearing with two aligning seats from our Premium range - ID 55mm, OD 125mm and width 88mm.
Also known as 54314U, 54314+2xU
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for 54314+2X U314 | |
| Reference | 54314+2X U314 |
| Brand | Premium |
| Inside Diameter | 55mm |
| Outside Diameter | 125mm |
| Width | 88mm |
| Type | Medium Series |
| Weight (KG) | 4.773 |

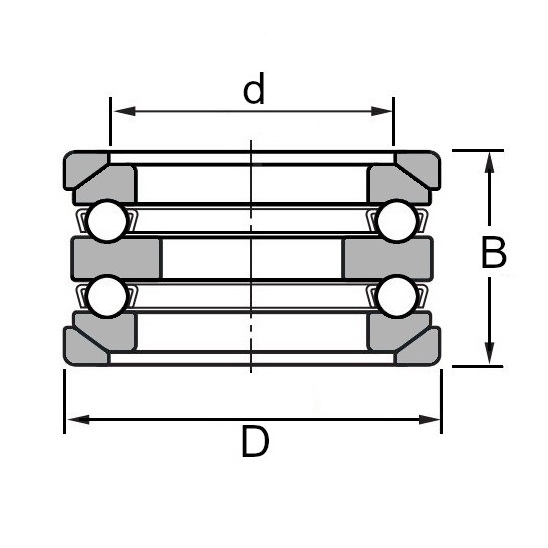

Schematic for 54314+2X U314 | |
| B | 88mm |
| d | 55mm |
| D | 125mm |
