54320+2X U320
THRUST BALL BEARING WITH A 85MM BORE - SELECT RANGE

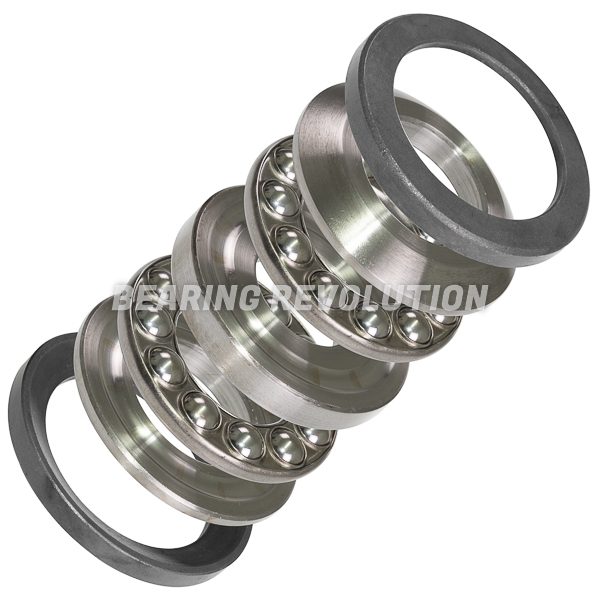

Medium series double direction thrust ball bearing with two aligning seats from our Select range - ID 85mm, OD 170mm and width 115mm.
Also known as 54320U, 54320+2xU
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
Please use this form for enquiries and pricing.
Specifications for 54320+2X U320 | |
| Reference | 54320+2X U320 |
| Brand | Select |
| Inside Diameter | 85mm |
| Outside Diameter | 170mm |
| Width | 115mm |
| Type | Medium Series |
| Weight (KG) | 10.818 |

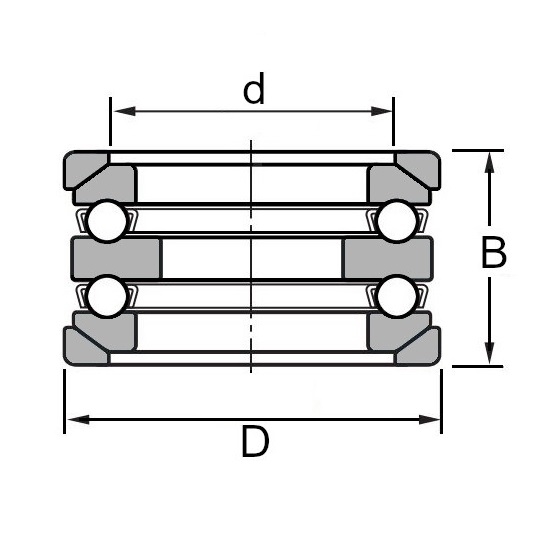

Schematic for 54320+2X U320 | |
| B | 115mm |
| d | 85mm |
| D | 170mm |
