54409+2X U409
THRUST BALL BEARING WITH A 35MM BORE - SELECT RANGE
Heavy series double direction thrust ball bearing with two aligning seats from our Select range - ID 35mm, OD 100mm and width 86mm.
Also known as 54409U, 54409+2xU
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
Please use this form for enquiries and pricing.
Specifications for 54409+2X U409 | |
| Reference | 54409+2X U409 |
| Brand | Select |
| Inside Diameter | 35mm |
| Outside Diameter | 100mm |
| Width | 86mm |
| Type | Heavy Series |
| Weight (KG) | 3.427 |

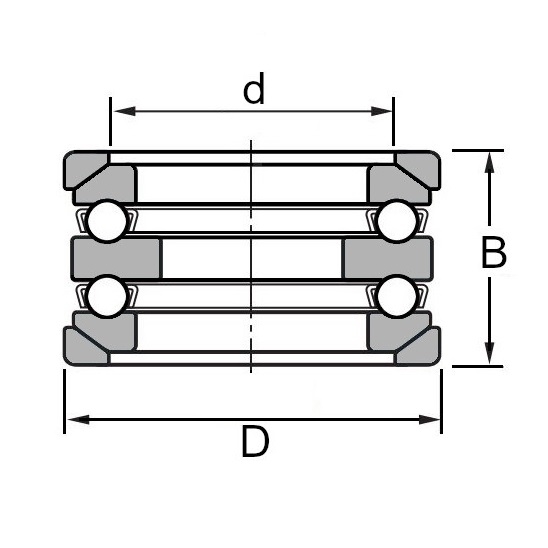

Schematic for 54409+2X U409 | |
| B | 86mm |
| d | 35mm |
| D | 100mm |
