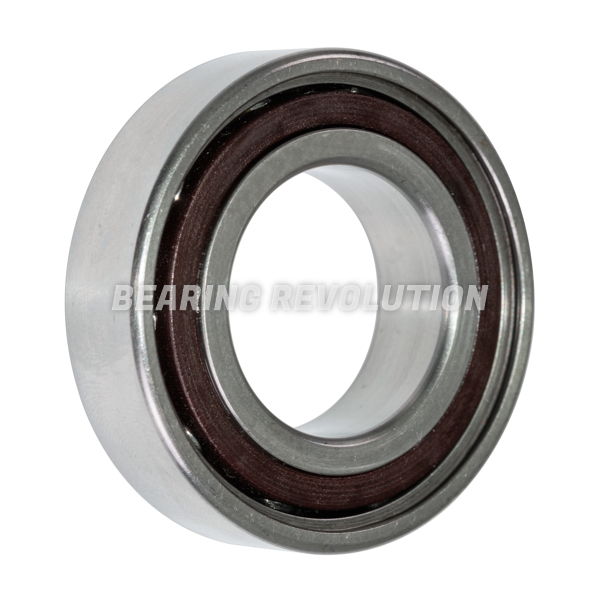

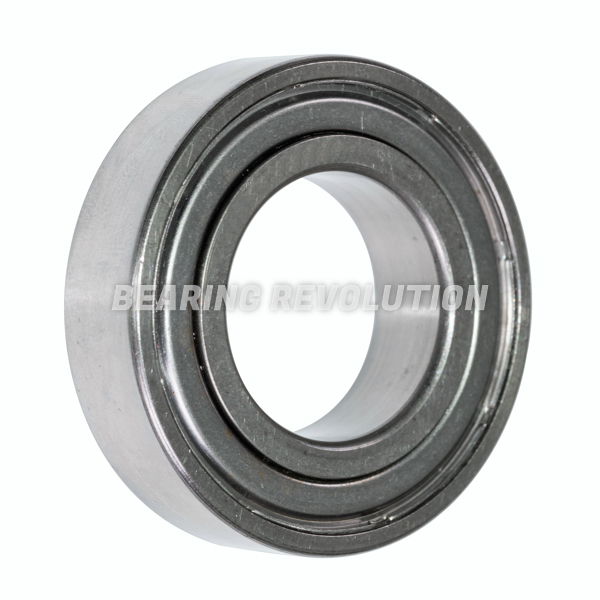

6003 Z TBH
DEEP GROOVE BALL BEARING WITH A 17MM BORE - PREMIUM RANGE
Light series single row deep groove ball bearing with standard clearance and one shield from our Premium range. 17mm OD, 35mm OD and 10mm width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1+£4.15 (£4.98 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 6003 Z TBH | |
| Reference | 6003 Z TBH |
| Brand | Premium |
| Inside Diameter | 17mm |
| Outside Diameter | 35mm |
| Width | 10mm |
| Clearance | standard |
| Seals / Shields | one shield |
| Weight (KG) | 0.042 |
Schematic for 6003 Z TBH | |
| B | 10mm |
| d | 17mm |
| D | 35mm |
