Please note photos are for illustration purposes only

6009 2RS C3, DEEP GROOVE BALL BEARING WITH A 45MM BORE - SELECT RANGE

Name: 6009 2RS C3, Deep Groove Ball Bearing with a 45mm bore - Select Range
Brand: Select
Price: 18.36 GBP
Availability: InStock

BR Stock No. S-6009 2RS C3 | Brand: Select | Mfr. Part No. 6009 2RS C3

Single Row Deep Groove Ball Bearing, Two Seals, from our Select range. 45mm ID, 75mm OD, 16mm width.

Also known as 6009 2RS1 C3

Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.

UnitsPer unit
1 - 4£15.30 (£18.36 inc VAT)
5 - 9£14.53 (£17.44 inc VAT)
10 +£13.77 (£16.52 inc VAT)
Bulk Order PricesENQUIRE

6009 2RS C3, Deep Groove Ball Bearing with a 45mm bore - Select Range Schematic

Specifications for 6009 2RS C3, Deep Groove Ball Bearing with a 45mm bore - Select Range
Reference	6009 2RS C3
Brand	Select
Inside Diameter	45mm
Outside Diameter	75mm
Width	16mm
Clearance	C3
Seals / Shields	Two Seals
Weight (KG)	0.259

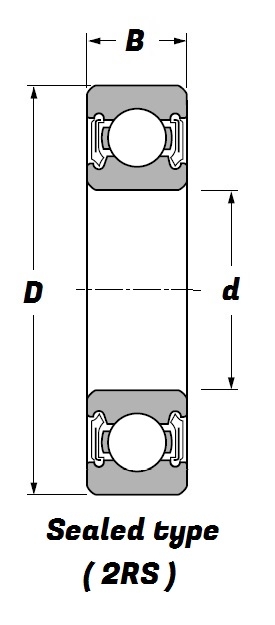

Schematic for 6009 2RS C3, Deep Groove Ball Bearing with a 45mm bore - Select Range
B	16mm
d	45mm
D	75mm
