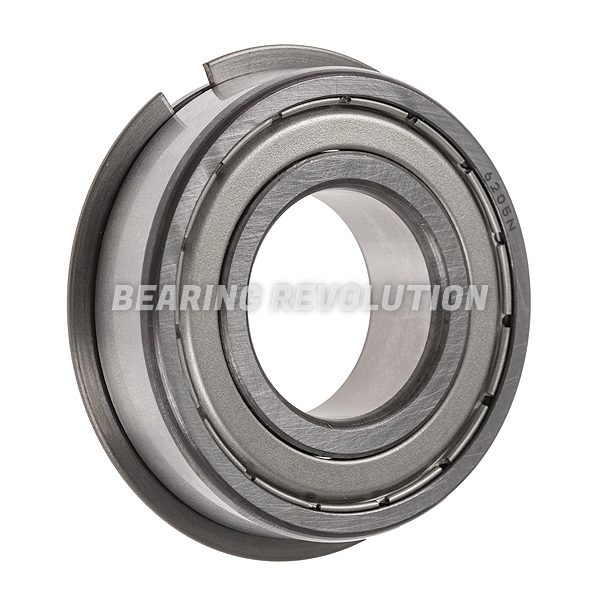

6009 Z NR
DEEP GROOVE BALL BEARING WITH A 45MM BORE - PREMIUM RANGE
Light series single row deep groove ball bearing with standard clearance, one shield and a fitted snap ring from our Premium range. 45mm OD, 75mm OD and 16mm width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1+£34.56 (£41.47 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 6009 Z NR | |
| Reference | 6009 Z NR |
| Brand | Premium |
| Inside Diameter | 45mm |
| Outside Diameter | 75mm |
| Width | 16mm |
| Clearance | standard |
| Seals / Shields | one shield |
| Snap Ring | Snap Ring |
| Weight (KG) | 0.249 |

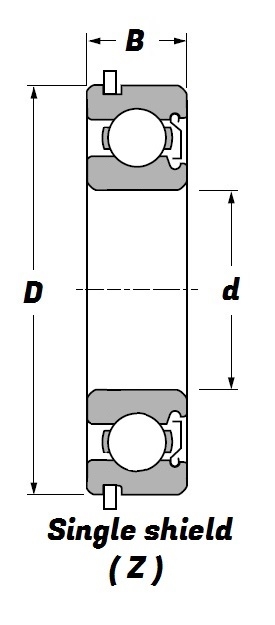

Schematic for 6009 Z NR | |
| B | 16mm |
| d | 45mm |
| D | 75mm |
