6201 Z N C3
DEEP GROOVE BALL BEARING WITH A 12MM BORE - PREMIUM RANGE
Standard series single row deep groove ball bearing with C3 clearance, one shield and a snap ring groove from our Premium range. 12mm OD, 32mm OD and 10mm width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for 6201 Z N C3 | |
| Reference | 6201 Z N C3 |
| Brand | Premium |
| Inside Diameter | 12mm |
| Outside Diameter | 32mm |
| Width | 10mm |
| Clearance | C3 |
| Seals / Shields | one shield |
| Snap Ring | Snap Ring Groove |
| Weight (KG) | 0.038 |

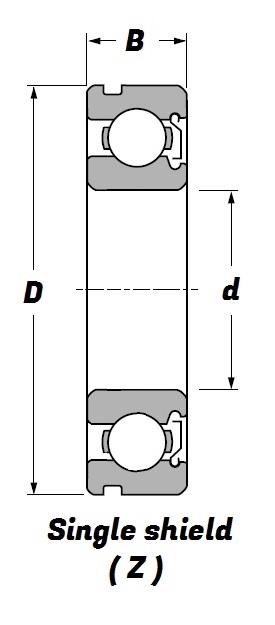

Schematic for 6201 Z N C3 | |
| B | 10mm |
| d | 12mm |
| D | 32mm |
