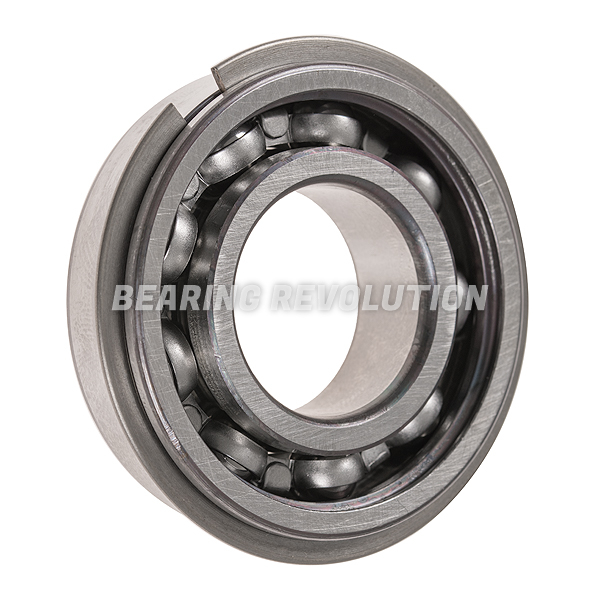

6204 Z NR C3
DEEP GROOVE BALL BEARING WITH A 20MM BORE - PREMIUM RANGE
Standard series single row deep groove ball bearing with C3 clearance, one shield and a fitted snap ring from our Premium range. 20mm OD, 47mm OD and 14mm width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
- UnitsPer unit
- 1+£15.35 (£18.42 inc VAT)
- Bulk Order PricesENQUIRE
Specifications for 6204 Z NR C3 | |
| Reference | 6204 Z NR C3 |
| Brand | Premium |
| Inside Diameter | 20mm |
| Outside Diameter | 47mm |
| Width | 14mm |
| Clearance | C3 |
| Seals / Shields | one shield |
| Snap Ring | Snap Ring |
| Weight (KG) | 0.106 |

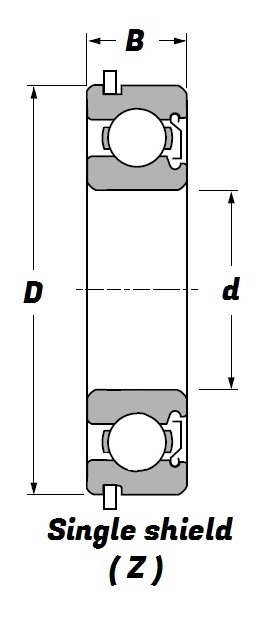

Schematic for 6204 Z NR C3 | |
| B | 14mm |
| d | 20mm |
| D | 47mm |
