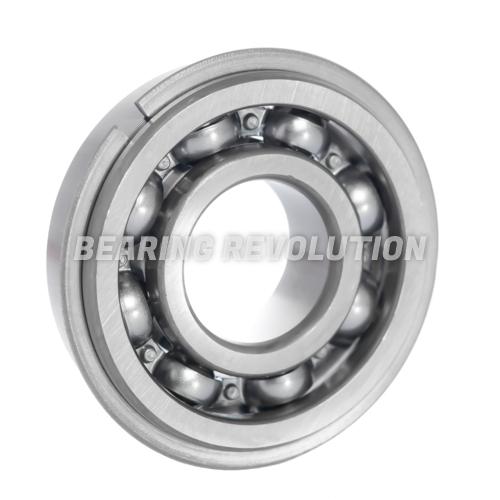

6209 NR C3
DEEP GROOVE BALL BEARING WITH A 45MM BORE - PREMIUM RANGE
Standard series single row deep groove ball bearing with C3 clearance, open type with a fitted snap ring from our Premium range. 45mm OD, 85mm OD and 19mm width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for 6209 NR C3 | |
| Reference | 6209 NR C3 |
| Brand | Premium |
| Inside Diameter | 45mm |
| Outside Diameter | 85mm |
| Width | 19mm |
| Clearance | C3 |
| Seals / Shields | open type |
| Snap Ring | Snap Ring |
| Weight (KG) | 0.407 |

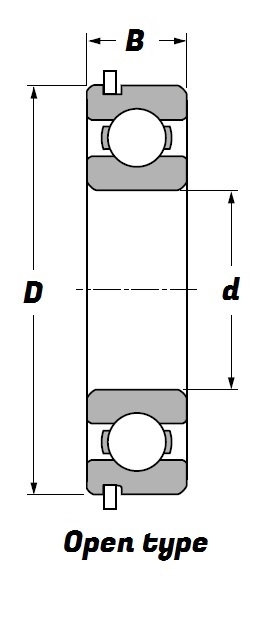

Schematic for 6209 NR C3 | |
| B | 19mm |
| d | 45mm |
| D | 85mm |
