6209 Z
DEEP GROOVE BALL BEARING WITH A 45MM BORE - SELECT RANGE
Standard series single row deep groove ball bearing with standard clearance and one shield from our Select range. 45mm OD, 85mm OD and 19mm width.
Our select range of QCB ball & roller bearings and PTP / SWR power transmission products - widely used by OEM's as a competitive alternative to premium brands without compromising on quality.
Please use this form for enquiries and pricing.
Specifications for 6209 Z | |
| Reference | 6209 Z |
| Brand | Select |
| Inside Diameter | 45mm |
| Outside Diameter | 85mm |
| Width | 19mm |
| Clearance | standard |
| Seals / Shields | one shield |
| Weight (KG) | 0.41 |

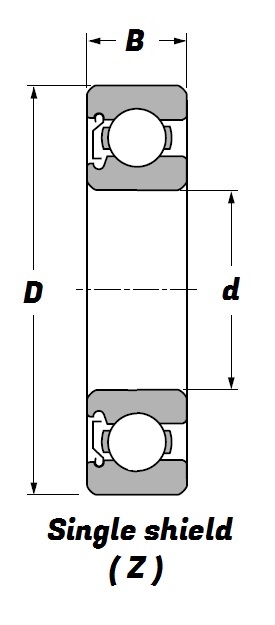

Schematic for 6209 Z | |
| B | 19mm |
| d | 45mm |
| D | 85mm |
