6222 Z NR C3
DEEP GROOVE BALL BEARING WITH A 110MM BORE - STEEL CAGE - PREMIUM RANGE

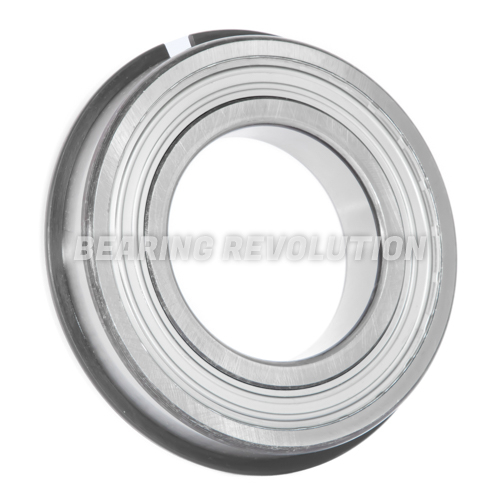

Standard series single row deep groove ball bearing with C3 clearance, one shield and a fitted snap ring from our Premium range. 110mm ID, 200mm OD, 38mm width.
Our premium range includes FAG, INA, KOYO, NADELLA, NSK, NTN, REXNORD, RHP, SKF, TIMKEN and TORRINGTON brands. (In the unlikely event we do not have one of these brands in stock we will supply an alternative brand of premium quality).
Please use this form for enquiries and pricing.
Specifications for 6222 Z NR C3 | |
| Reference | 6222 Z NR C3 |
| Brand | Premium |
| Inside Diameter | 110mm |
| Outside Diameter | 200mm |
| Width | 38mm |
| Clearance | C3 |
| Seals / Shields | One Shield |
| Snap Ring | Snap Ring |
| Weight (KG) | 4.36 |

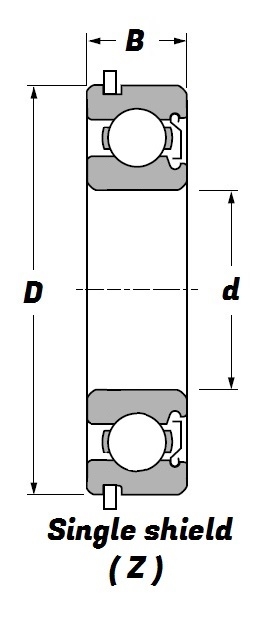

Schematic for 6222 Z NR C3 | |
| B | 38mm |
| d | 110mm |
| D | 200mm |
